Rear Compartment Side Trim Replacement - Right Side (Sedan except AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

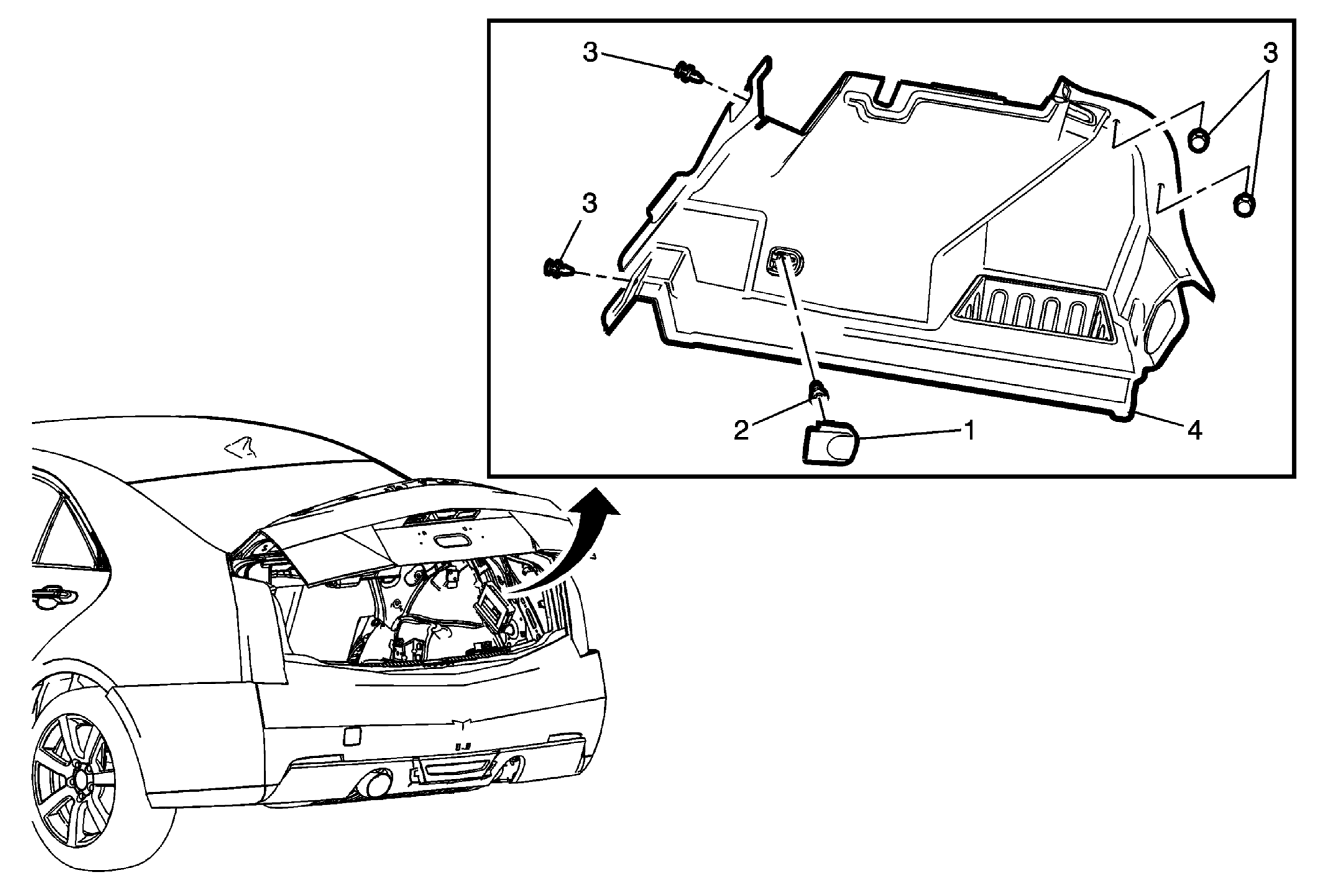

Fig 1: Rear Compartment Side Trim Assembly - Right Side (Sedan Except AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement . Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (without AM9) .
1	Cargo Tie-Down Loop Bolt Cap
2	Cargo Tie-Down Loop Fastener CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
3	Rear Compartment Side Trim Retainer (Qty: 4)
4	Rear Compartment Side Trim Assembly - Right Side
