Rear End Trim Finish Panel Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

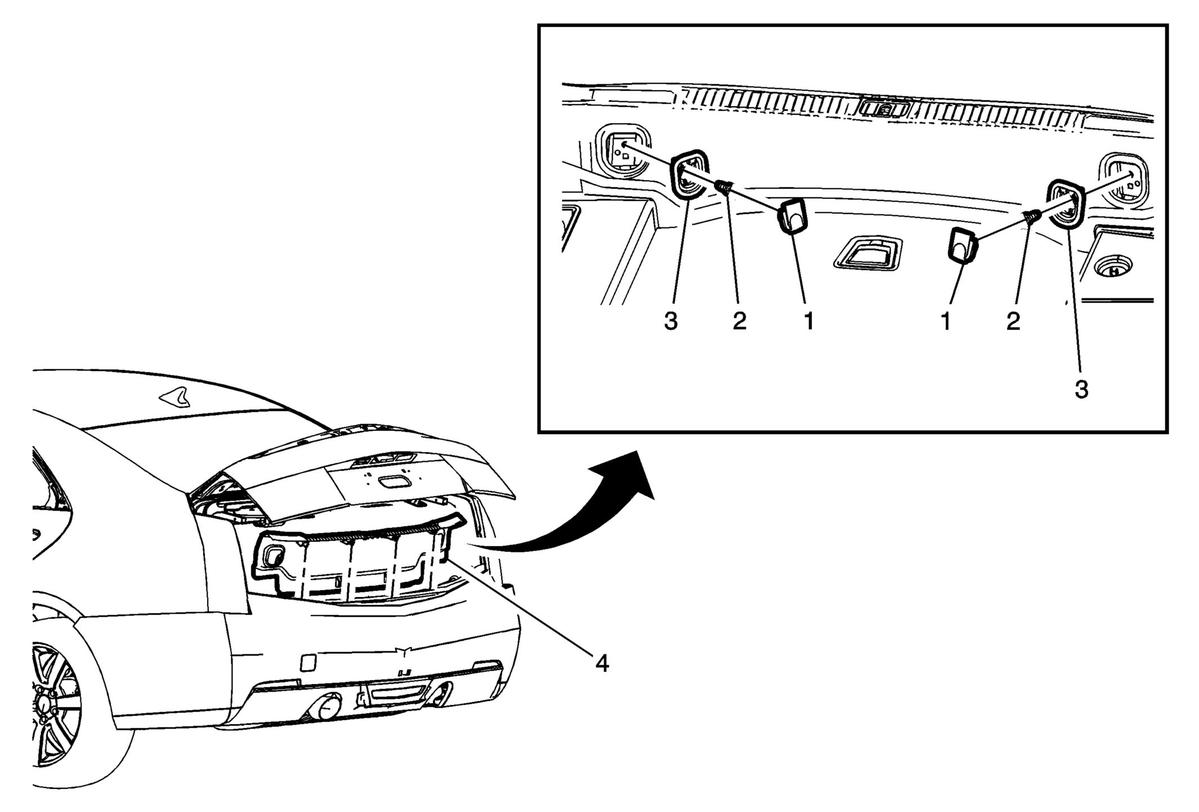

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement . |
|
| 1 | Cargo Tie Down Loop Cap (Qty: 2) |
| 2 | Cargo Tie Down Loop Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb ft) |
| 3 | Cargo Tie Down Loop Assembly |
| 4 | Rear End Trim Finish Panel Assembly |
