Rear Compartment Side Trim Replacement - Left Side (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

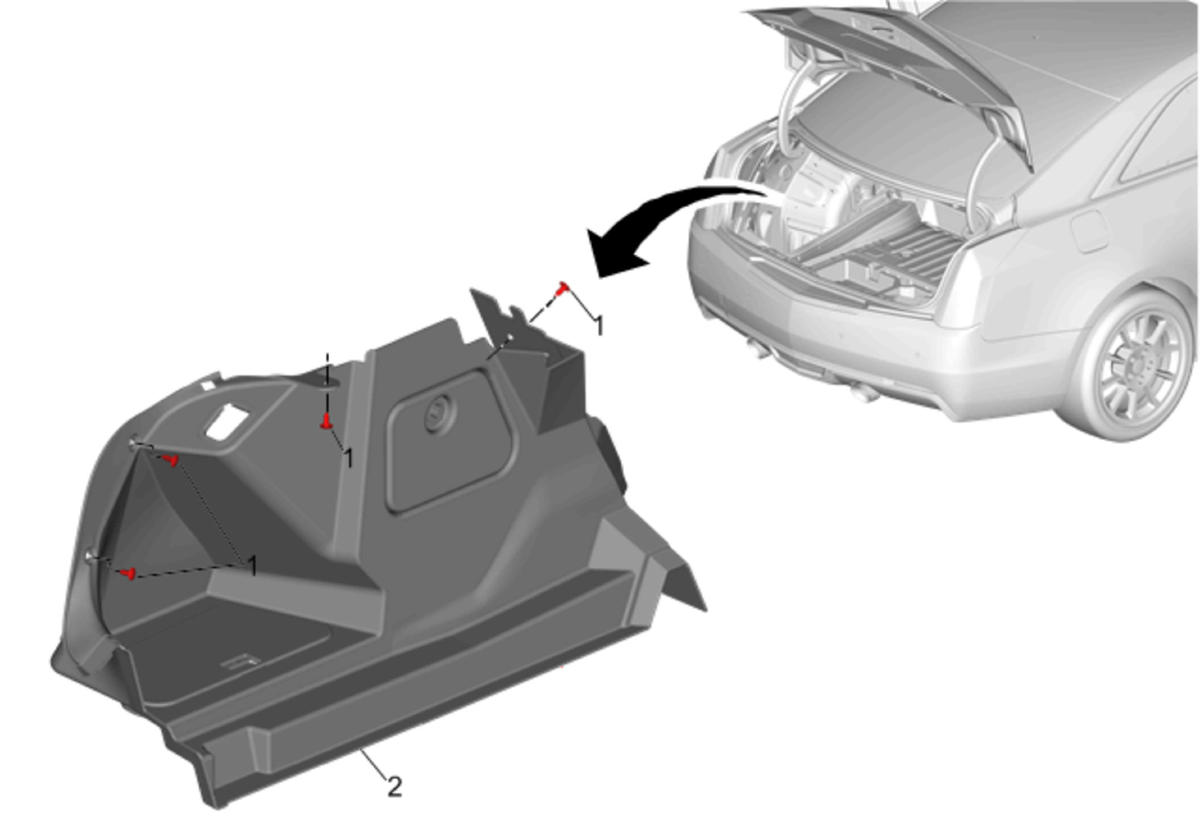

Fig 1: Rear Compartment Side Trim Assembly - Left Side (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement . Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . Remove the rear compartment rear window lower trim. Refer to Rear Compartment Rear Window Lower Trim Replacement (Coupe) . Fold down rear seat to access retainer.
1	Rear Compartment Side Trim Retainer (Qty: 4)
2	Rear Compartment Side Trim Assembly - Left Side NOTE: Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
Remove the rear compartment rear window lower trim. Refer to Rear Compartment Rear Window Lower Trim Replacement (Coupe) .
Fold down rear seat to access retainer.

Rear Compartment Side Trim Retainer (Qty: 4)

Rear Compartment Side Trim Assembly - Left Side

NOTE:

Carefully manipulate the deck lid hinge opening of the side trim past the hinge cover.
