Rear Compartment Rear Window Lower Trim Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

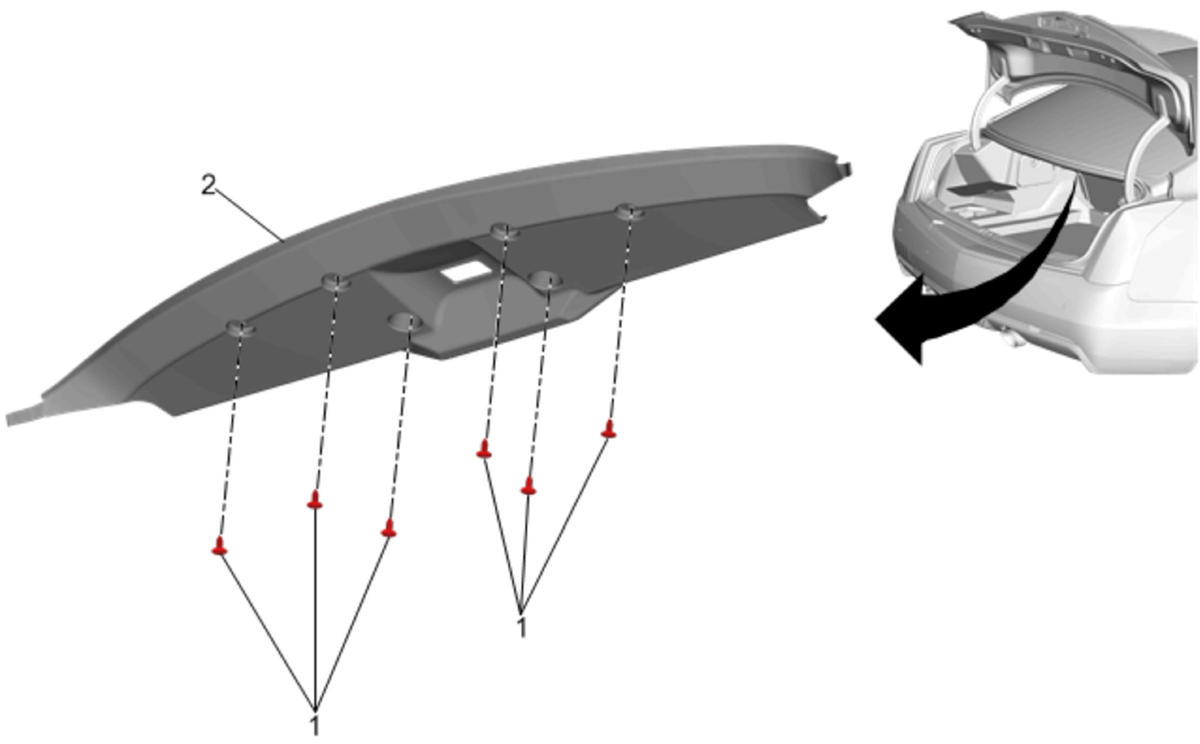

| Callout |
Component Name |
| 1 |
Rear Compartment Rear Window Lower Trim Retainer (Qty: 6) Procedure
- Open the rear compartment lid to access retainers.
- Use a trim removal tool to aid in the removal of the retainers.
|
| 2 |
Rear Compartment Rear Window Lower Trim Assembly |
