Center Pillar Upper Trim Panel Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

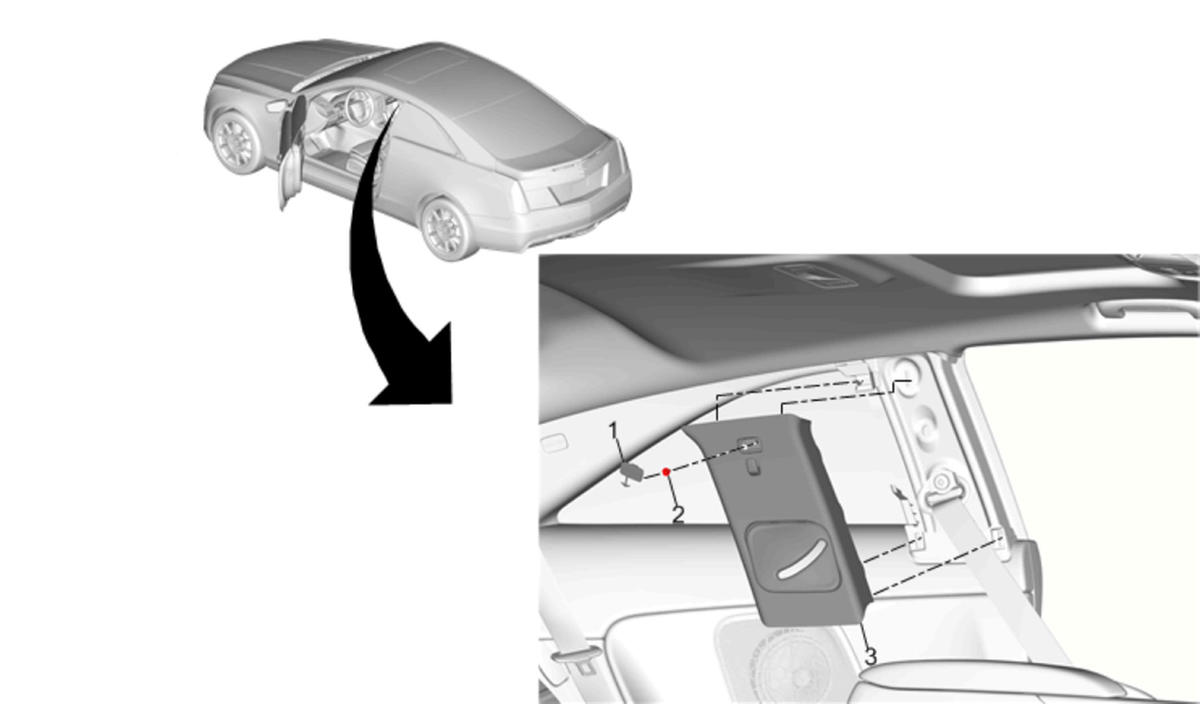

Fig 1: Center Pillar Upper Trim Panel Assembly (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the roof rail SIR system. Refer to SIR Disabling and Enabling . Remove the seat belt tensioner fastener in order to feed the seat belt through front seat belt opening bezel which is part of center pillar upper trim panel. Refer to Front Seat Belt Anchor Plate Tensioner Replacement (Coupe) .
1	Airbag Name Plate
2	Center Pillar Upper Garnish Molding Fastener CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Center Pillar Upper Trim Panel Assembly Procedure Use a plastic trim tool to aid in disengaging retaining clips on center pillar upper trim panel from the body lock pillar inner panel.
