Intake Air Duct Replacement
WARNING: This page is about a different variant/trim than selected.

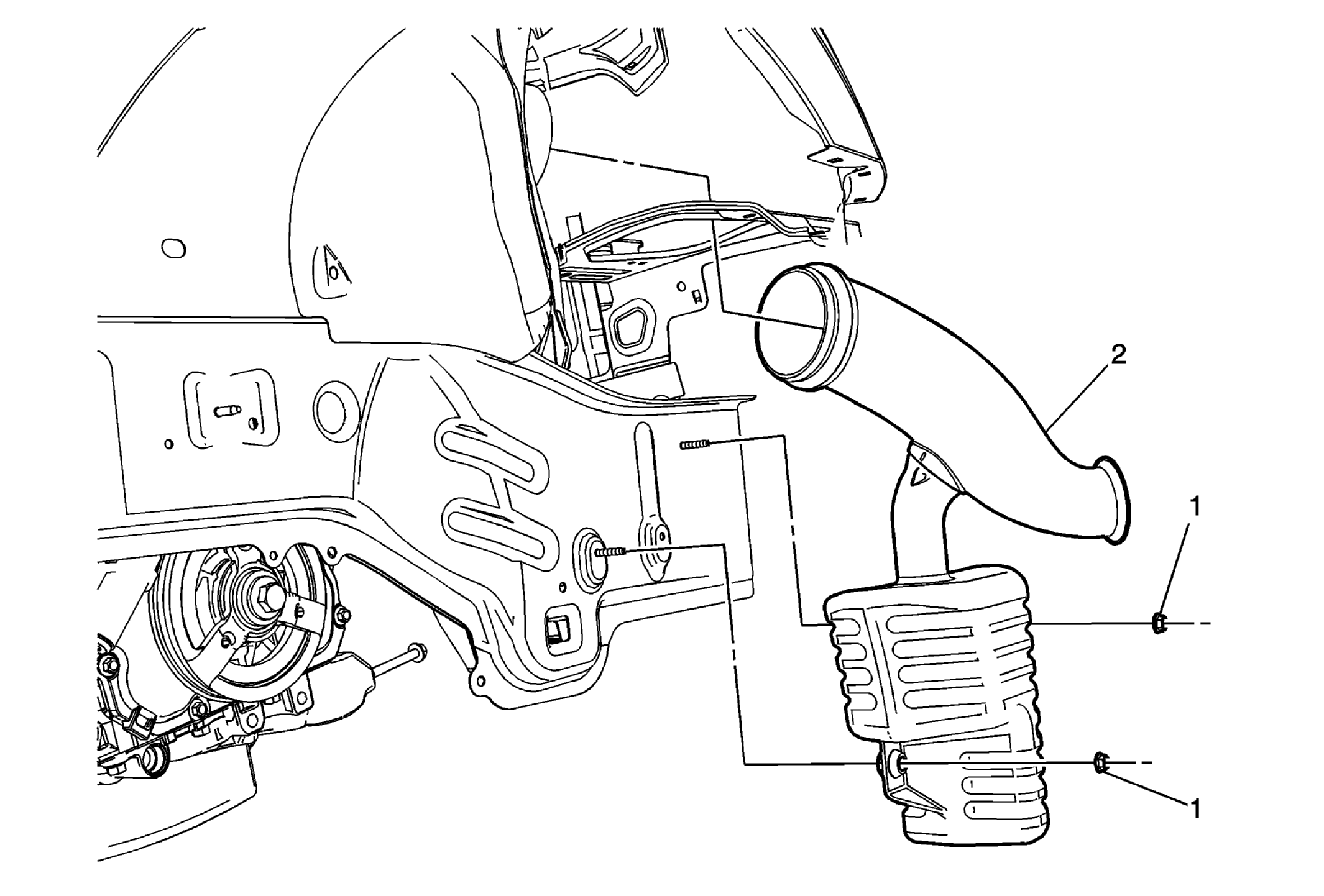

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse panel. Refer to Front Wheelhouse Liner Replacement (Equinox)Front Wheelhouse Liner Replacement (Terrain) . |
|
| 1 | Front Intake Air Duct Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Front Intake Air Duct Procedure Disconnect the electrical connector. |
