Front Wheelhouse Liner Replacement (Terrain)

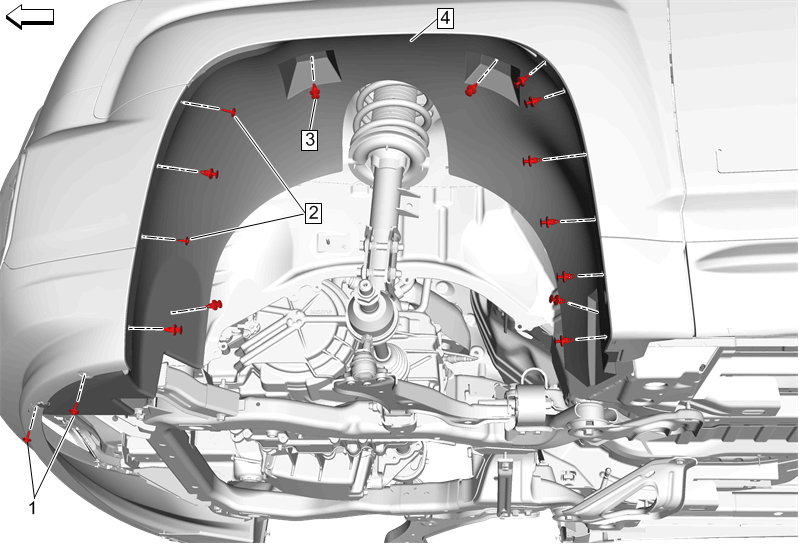

Fig 1: Front Wheelhouse Liner (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Tire and Wheel Removal and Installation
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 (22 lb in)
2	Front Wheelhouse Liner Screw (Qty: 2) Tighten  2.5 (22 lb in)
3	Retainer (Qty: 12)
4	Front Wheelhouse Liner
