Front Wheelhouse Liner Replacement (Equinox)

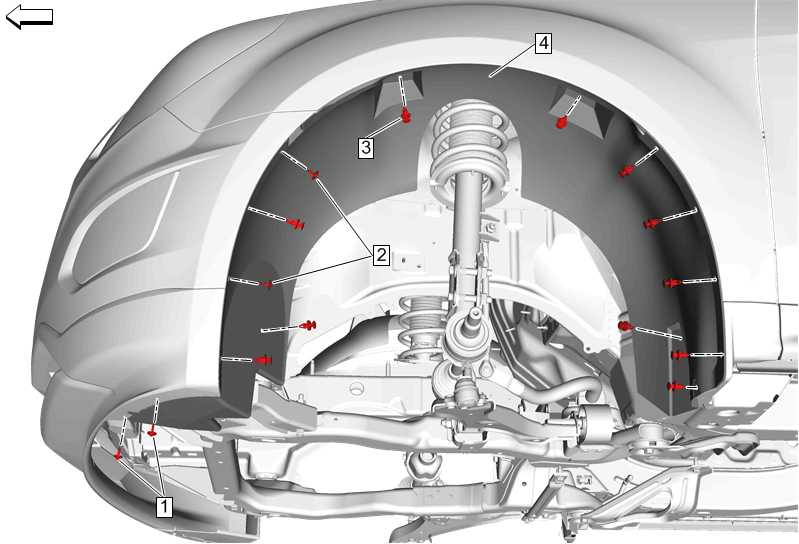

Fig 1: Front Wheelhouse Liner (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Tire and Wheel Removal and Installation
1	Front Bumper Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Screw (Qty: 2) Tighten  2.5 N.m (22 lb in)
3	Retainer (Qty: 11)
4	Front Wheelhouse Liner
