Radiator Surge Tank Replacement

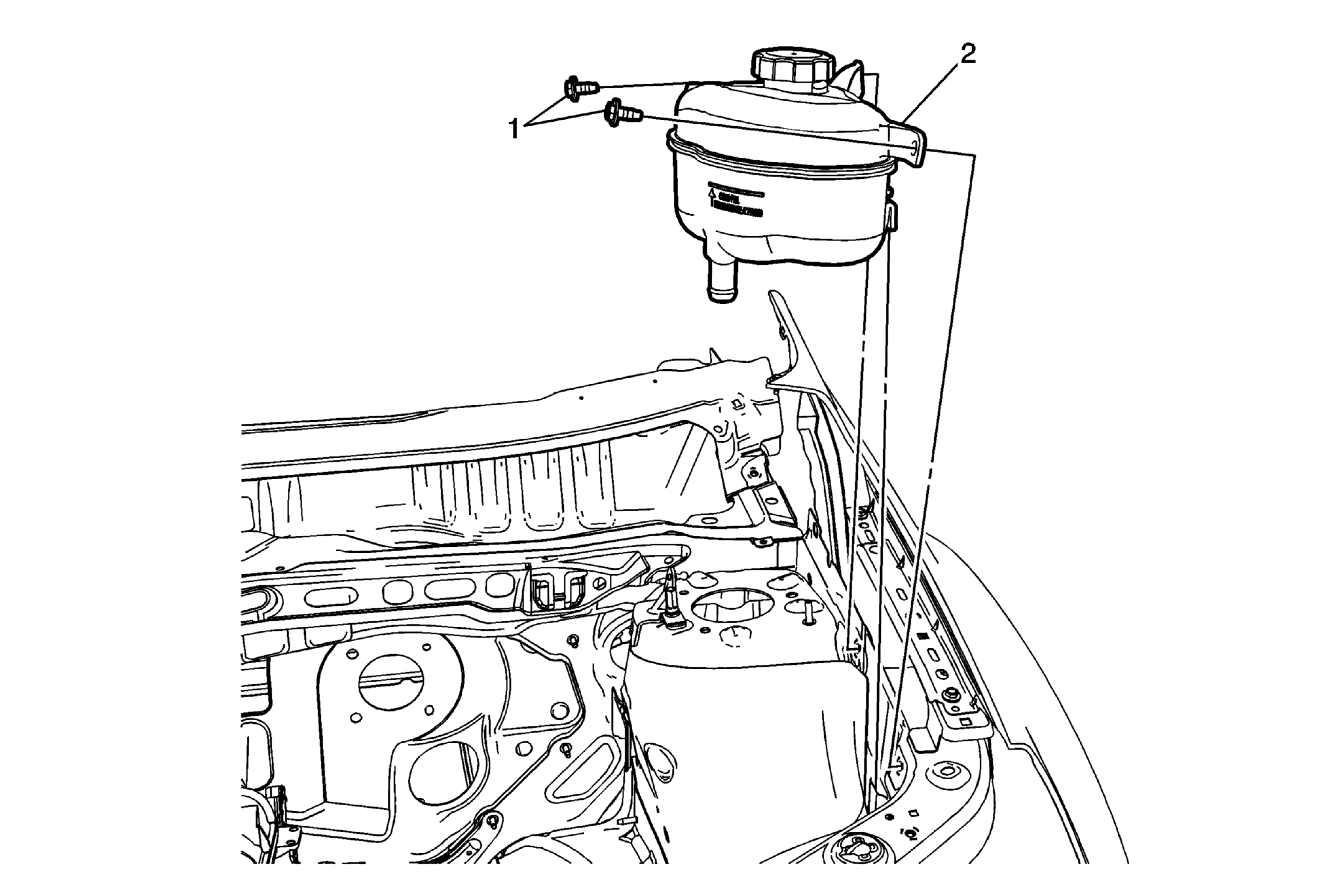

Fig 1: Radiator Surge Tank
GM2243465Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the coolant. Refer to Cooling System Draining and Filling (LFX) Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (LEA) .
  2. Remove the coolant recovery reservoir vent hose. Refer to Coolant Recovery Reservoir Vent Hose Replacement (LEA) .
  3. Remove the coolant recovery reservoir outlet hose. Refer to Coolant Recovery Reservoir Outlet Hose Replacement (LEA) .
1 Radiator Surge Tank Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Radiator Surge Tank
