Coolant Recovery Reservoir Outlet Hose Replacement (LEA)

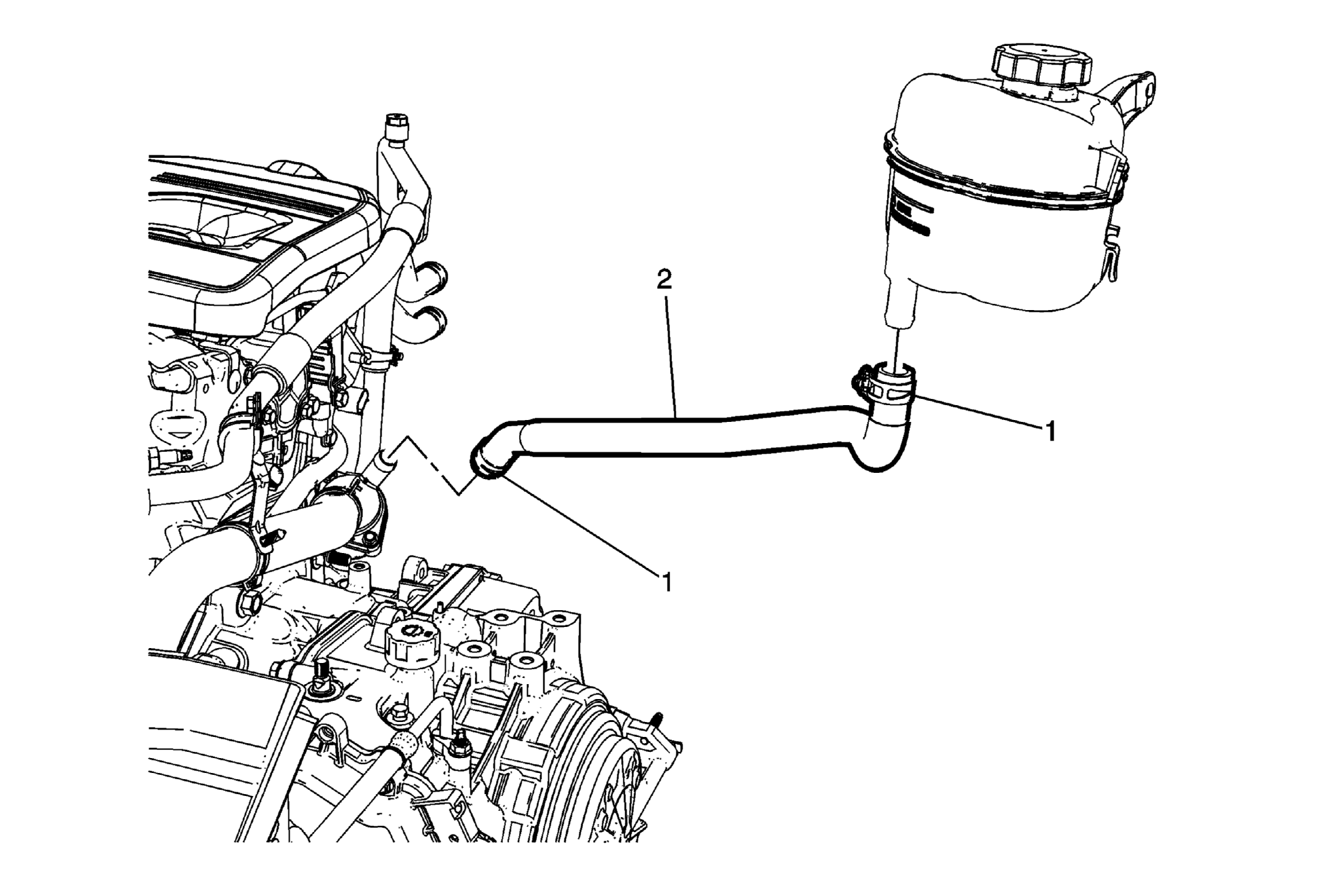

Fig 1: Coolant Recovery Reservoir Outlet Hose
GM2674360Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the coolant. Refer to Cooling System Draining and Filling (LEA) .
  2. Reposition the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement
1 Coolant Recovery Reservoir Outlet Hose Clamps (Qty 2)
Procedure
Using J 38185  Hose Clamp Pliers reposition the coolant recovery reservoir outlet hose clamps.
Special Tools
J 38185  Hose Clamp Pliers
2 Coolant Recovery Reservoir Outlet Hose
