Coolant Recovery Reservoir Vent Hose Replacement (LEA)

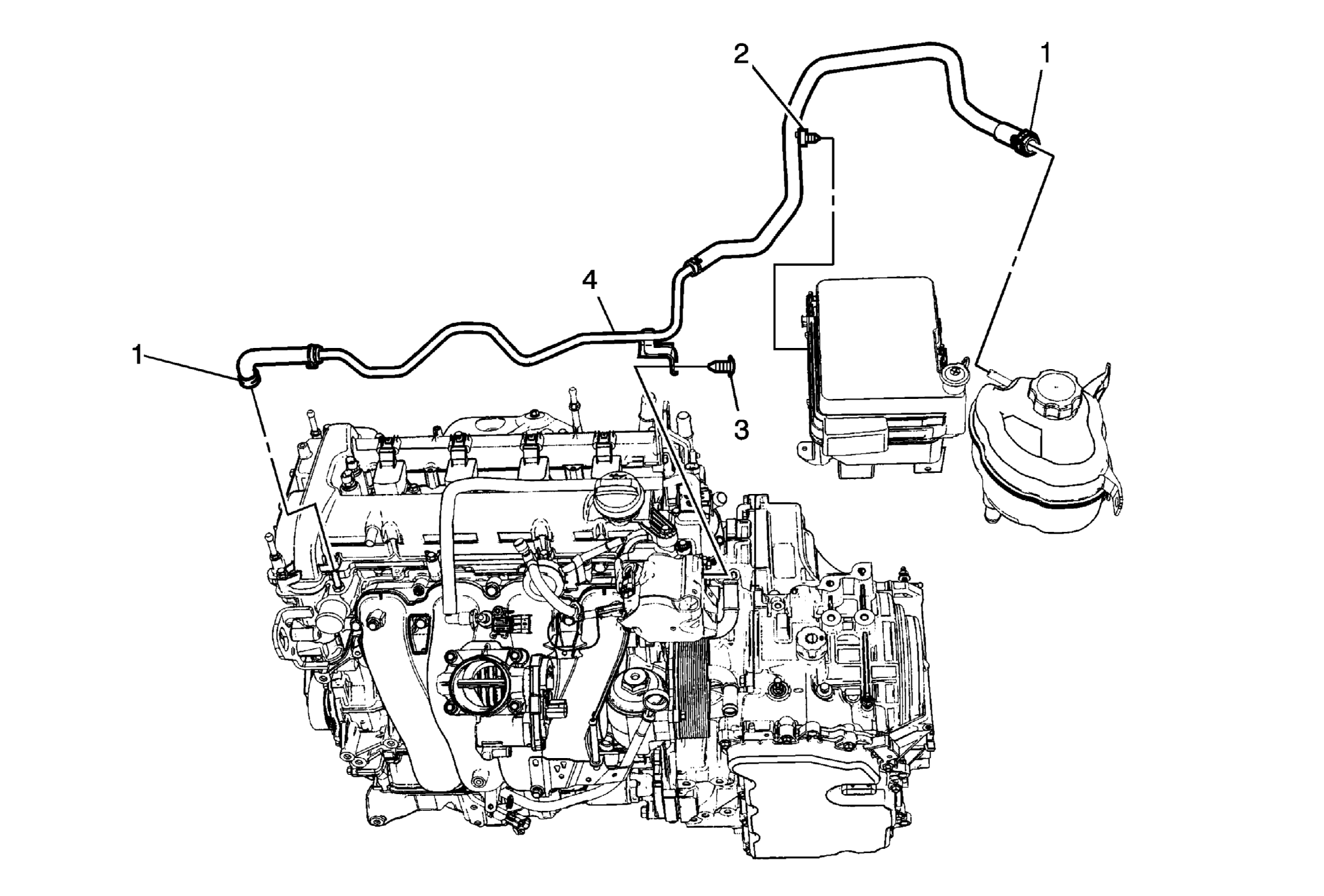

Fig 1: Coolant Recovery Reservoir Vent Hose (LAF)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (LEA) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
1	Coolant Recovery Reservoir Vent Hose Clamps (Qty 2) Procedure Using J 38185 Hose Clamp Pliers reposition the coolant recovery reservoir vent hose. Special Tools J 38185 Hose Clamp Pliers
2	Coolant Recovery Reservoir Vent Hose Retainer
3	Coolant Recovery Reservoir Vent Hose Retainer
4	Coolant Recovery Reservoir Vent Hose
