Front Bumper Fascia Support Replacement

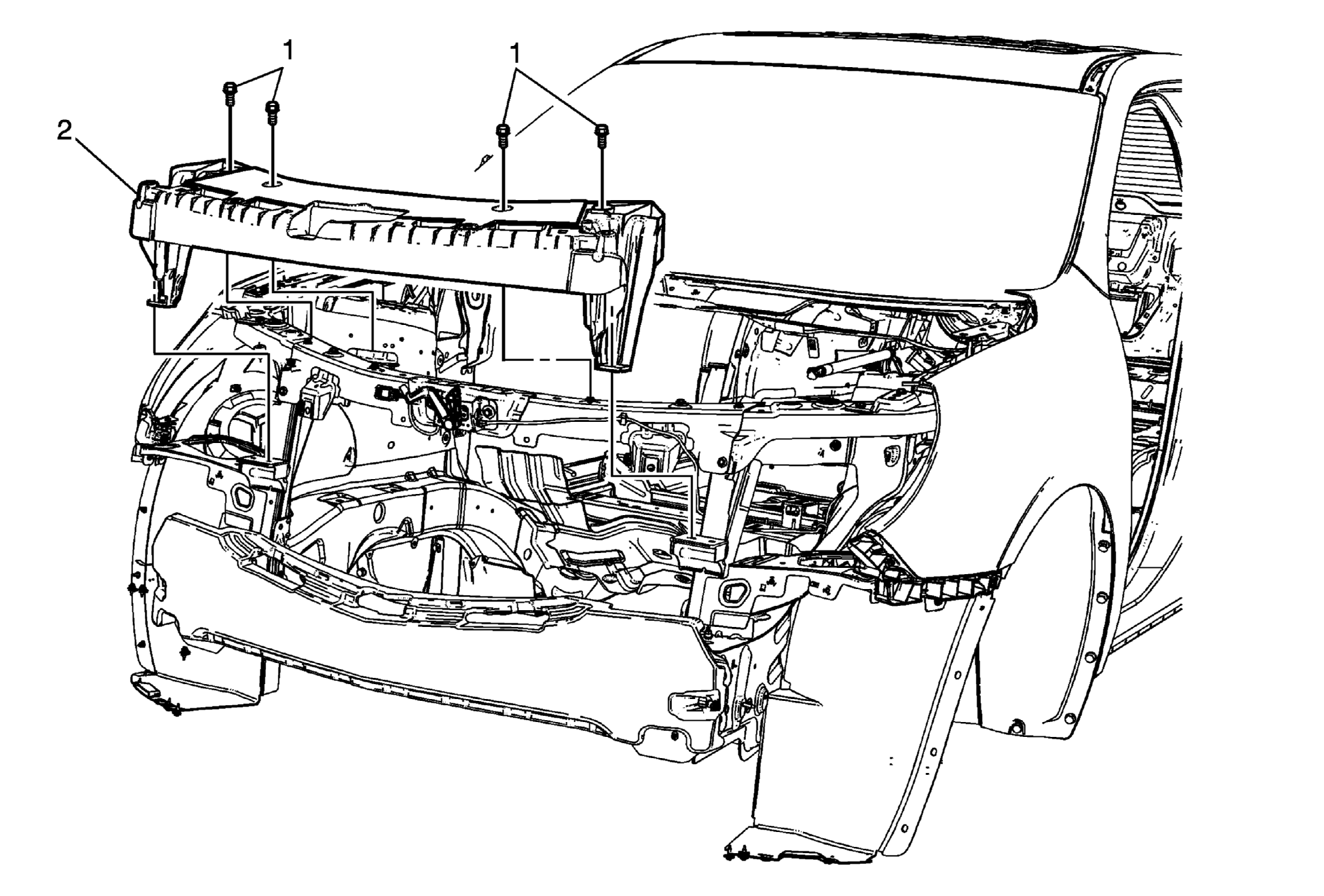

Fig 1: Identifying Front Bumper Fascia Support Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the headlamps. Refer to Headlamp Replacement (Chevrolet)Headlamp Replacement (GMC) .
1	Front Bumper Fascia Support Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Front Bumper Fascia Support Procedure  Slide forward and upward.
