Headlamp Replacement (GMC)

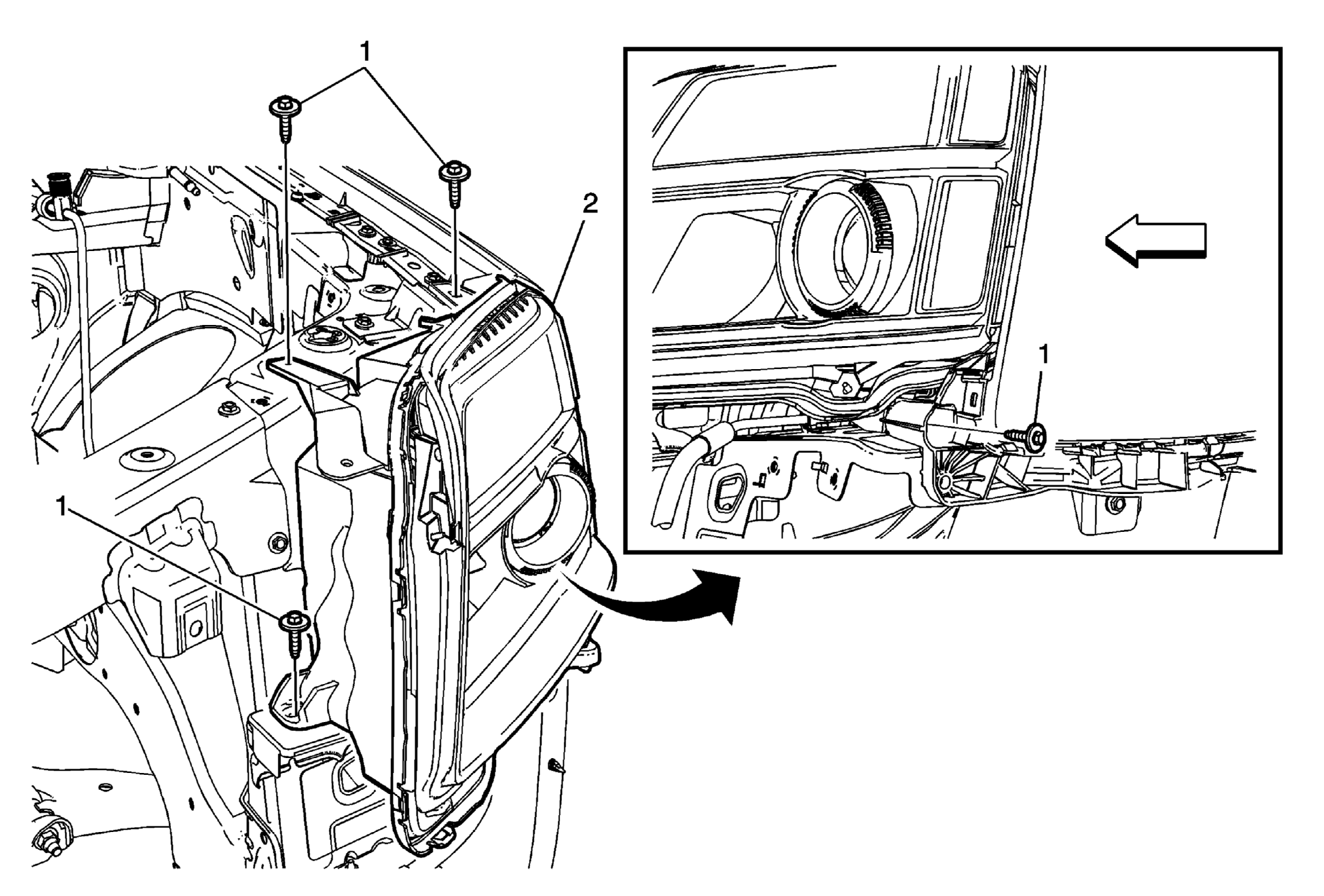

Fig 1: Headlamp (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the hood. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Terrain) .
1	Headlamp Assembly Bolt / Screw (Qty: 4) CAUTION: Refer to Fastener Caution . TIP: One screw is located inside the front bumper fascia side retainer assembly. Tighten 4 N.m (56 lb in)
2	Headlamp Assembly Procedure Pull from the bottom of the headlamp forward in order to release the headlamp locator pin from the front outer corner of the body rail. Disconnect the forward lamp harness electrical connector on the headlamp being serviced. Check and adjust the front headlamp aim after the headlamps have been reinstalled. Refer to Headlamp Aiming .

Callout

Component Name

Preliminary Procedure

Open the hood.
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Terrain) .

Headlamp Assembly Bolt / Screw (Qty: 4)

CAUTION:

TIP: One screw is located inside the front bumper fascia side retainer assembly.
Tighten
4 N.m (56 lb in)

Headlamp Assembly

Procedure

Pull from the bottom of the headlamp forward in order to release the headlamp locator pin from the front outer corner of the body rail.
Disconnect the forward lamp harness electrical connector on the headlamp being serviced.
Check and adjust the front headlamp aim after the headlamps have been reinstalled. Refer to Headlamp Aiming .
