Front Floor Console Accessory Housing Replacement (Traverse)

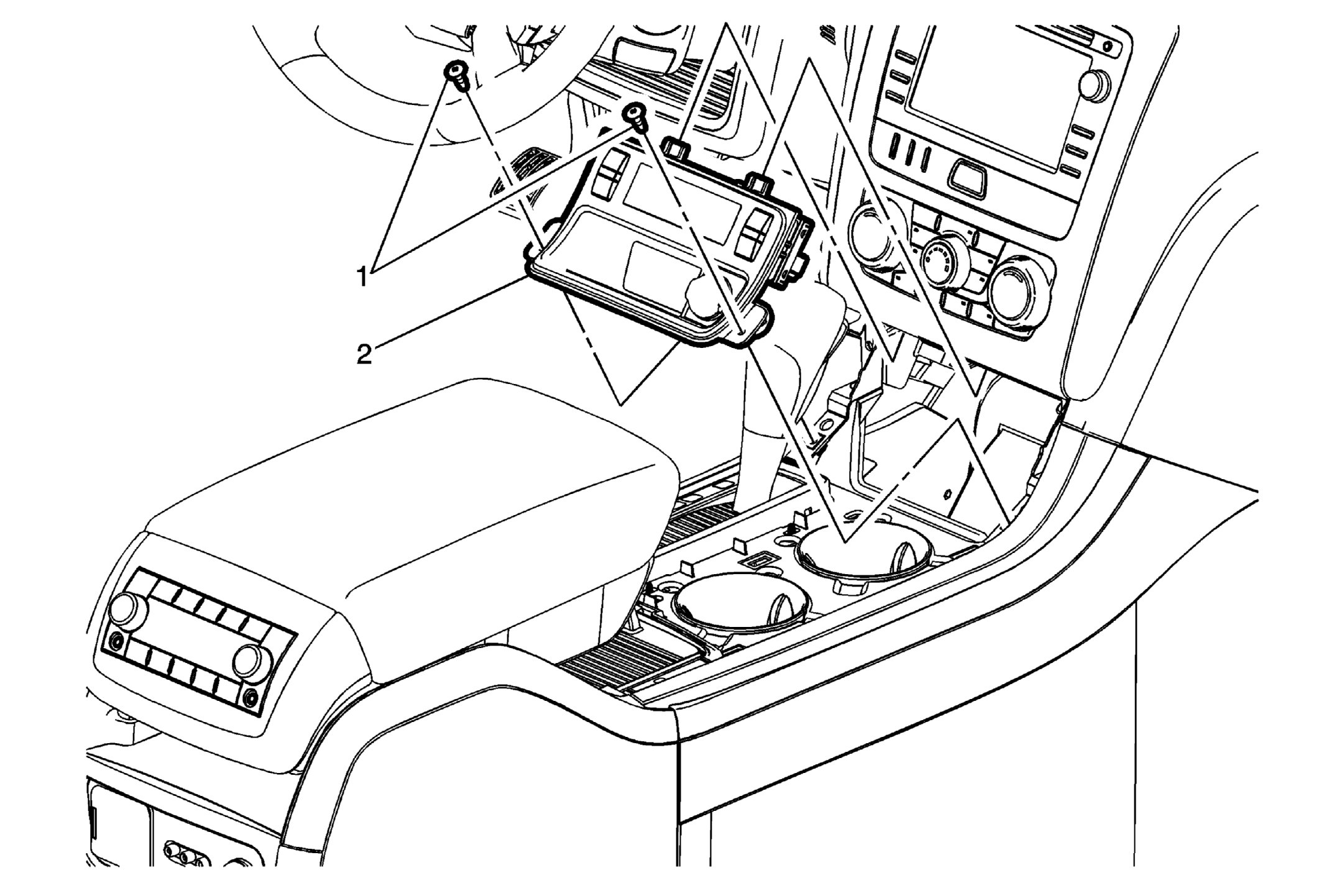

Fig 1: Front Floor Console Accessory Housing (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Acadia) , Front Floor Console Accessory Trim Plate Replacement (Enclave) or Front Floor Console Accessory Trim Plate Replacement (Traverse) .
1	Front Floor Console Accessory Housing Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Accessory Housing Procedure Move the shiftier into low gear in order to create enough clearance to remove the housing assembly. Disconnect the electrical connectors. When replacing the front floor console accessory housing assembly, transfer all necessary components.

Callout

Component Name

Front Floor Console Accessory Housing Screw (Qty: 2)

CAUTION:

Front Floor Console Accessory Housing

Procedure

Move the shiftier into low gear in order to create enough clearance to remove the housing assembly.
Disconnect the electrical connectors.
When replacing the front floor console accessory housing assembly, transfer all necessary components.
