Front Floor Console Accessory Trim Plate Replacement (Acadia)

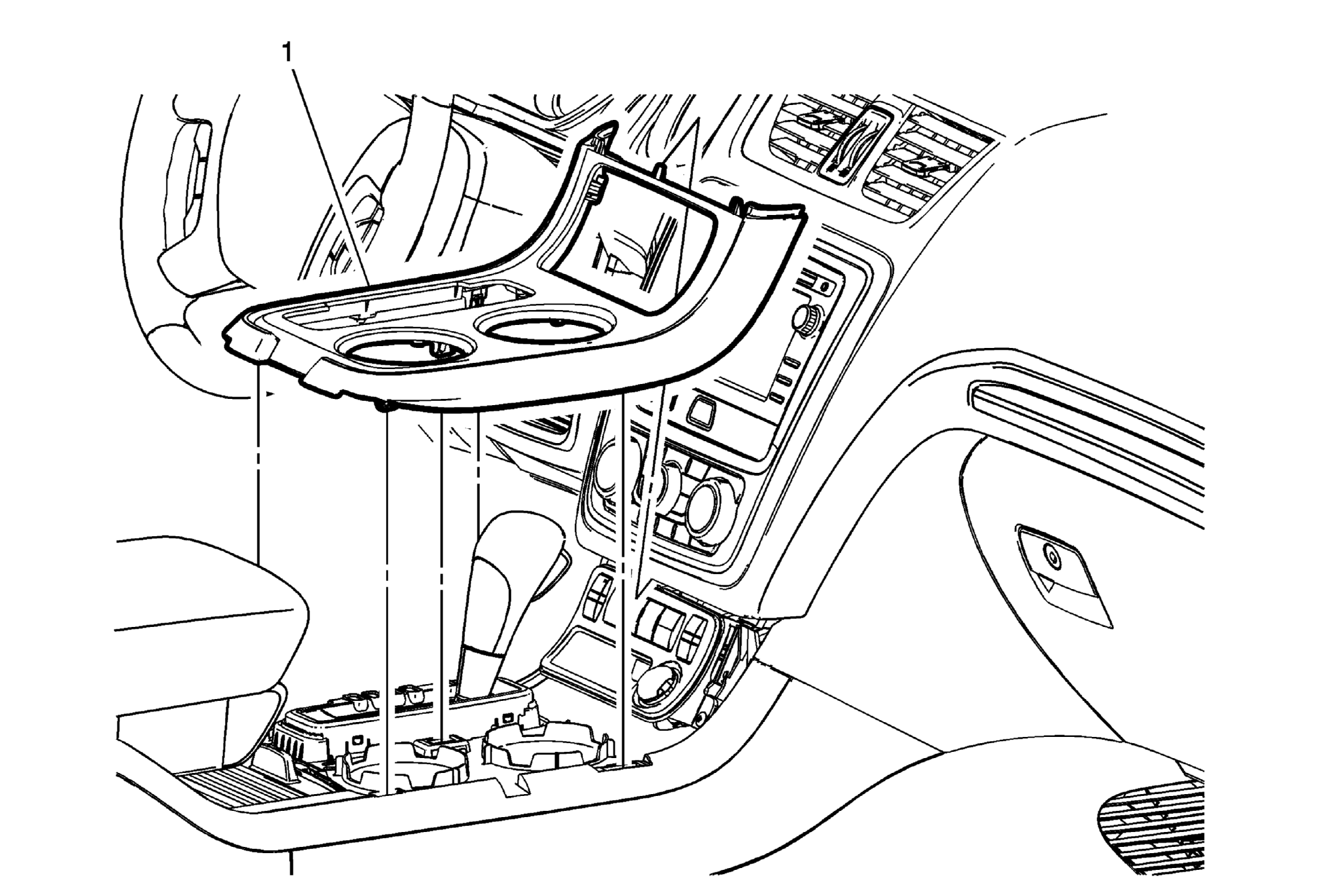

Fig 1: Front Floor Console Accessory Trim Plate (Acadia)
GM2869279Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Accessory Trim Plate Replacement (Acadia)

Callout Component Name
1 Front Floor Console Accessory Trim Plate

Procedures

  1. Apply the parking brake.
  2. Place the transmission control lever in the low range.
  3. Use a flat-bladed plastic trim tool in order to release the console accessory trim plate from the front floor console assembly.
