Front Floor Console Accessory Trim Plate Replacement (Enclave)
Courtesy of GENERAL MOTORS COMPANY Front Floor Console Accessory Trim Plate Replacement (Enclave)

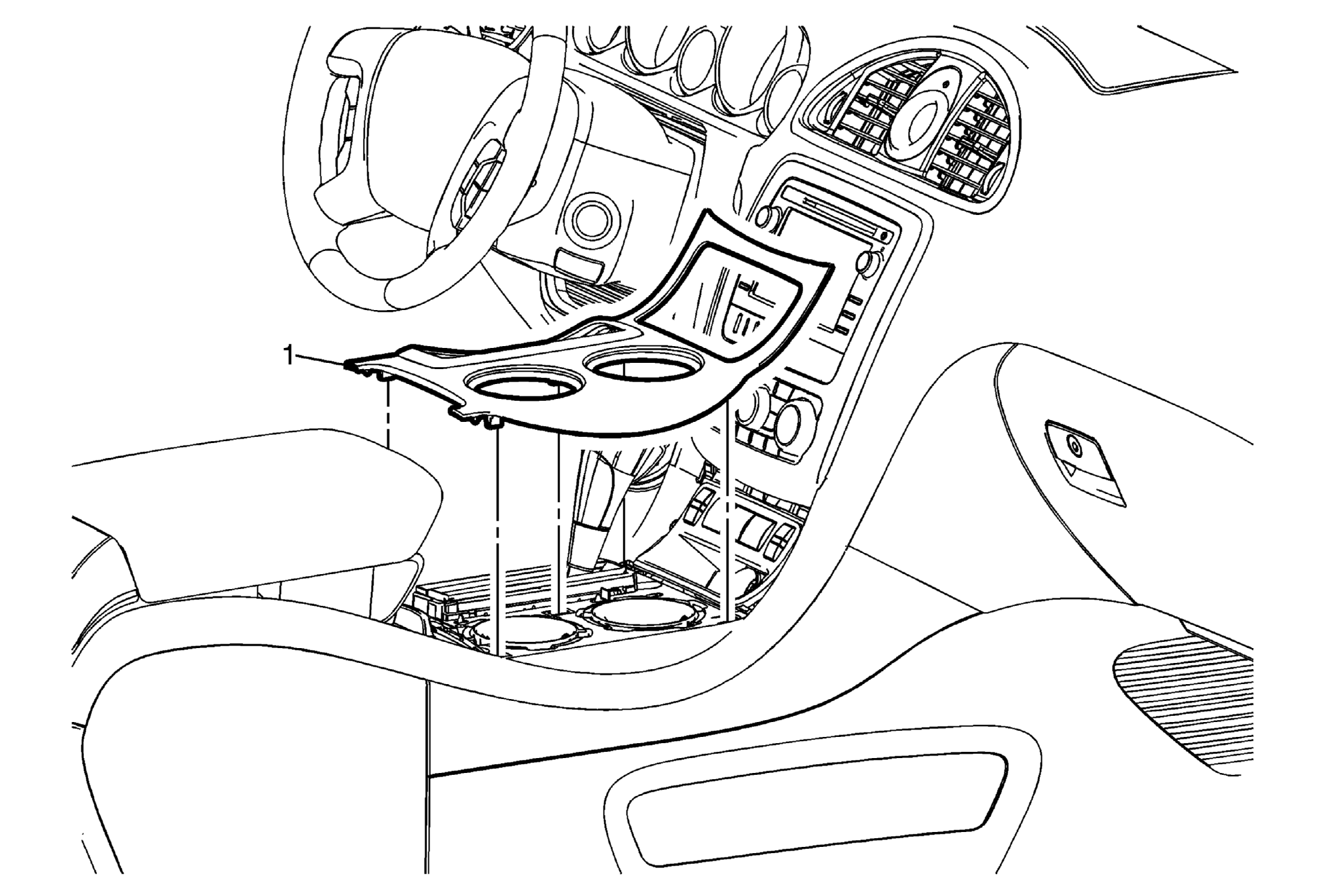

| Callout |
Component Name |
| 1 |
Front Floor Console Accessory Trim Plate
Procedure
Use a flat-bladed plastic trim tool in order to release the console accessory trim plate from the front floor console assembly. |
