3rd Row Seat Back Panel Replacement

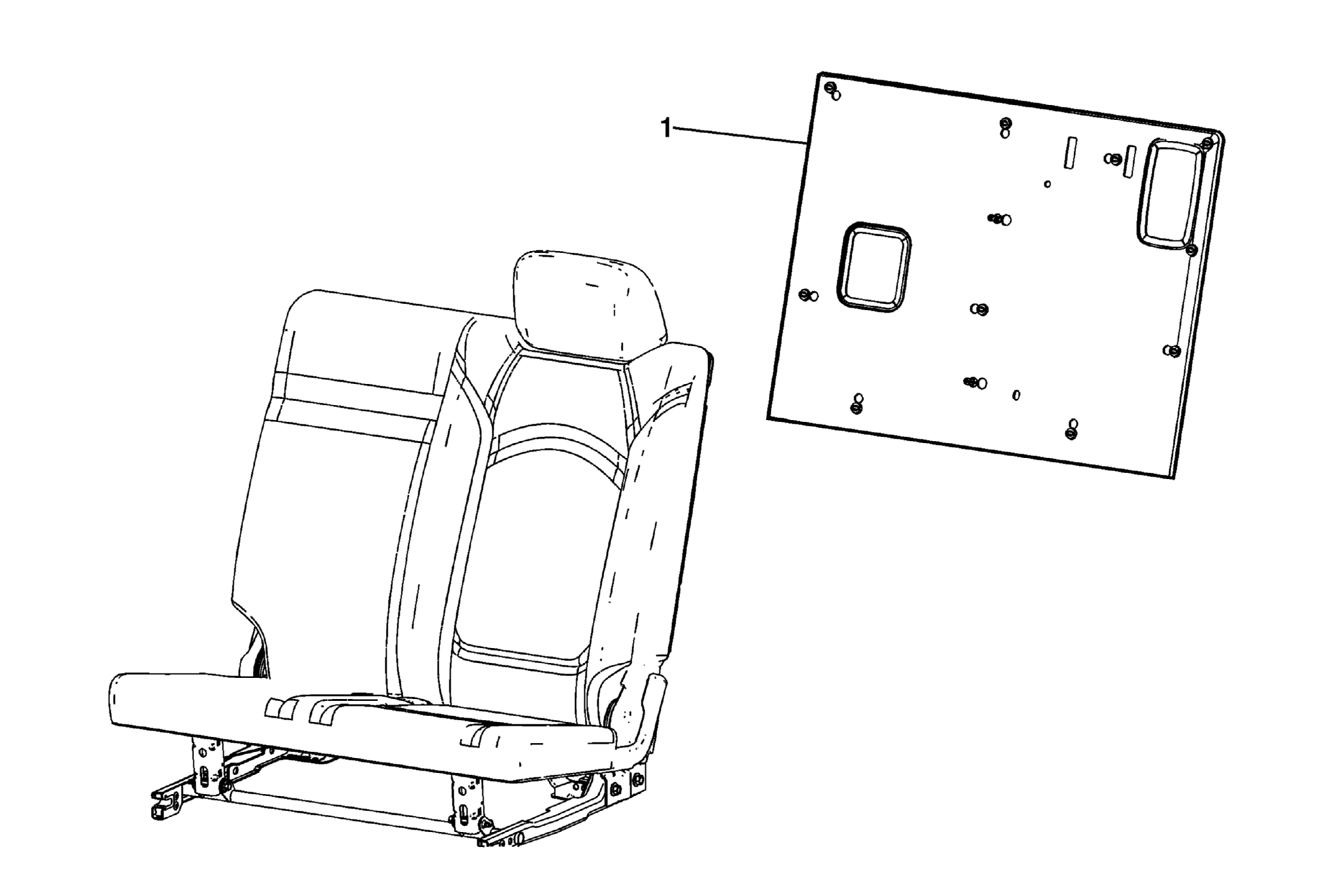

Fig 1: View Of Rear Seat Number 2 Back Cushion Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the child seat bracket trim cover. Refer to 3rd Row Seat Child Seat Bracket Replacement . Remove the rear seat back cushion release handle bezel. Refer to Rear Seat Pull Strap Replacement . Unzip the side zippers of the rear number 2 back trim cover. Flip the carpet of the back trim over to expose the panel.
1	Rear Seat No. 2 Back Cushion Panel TIP: Using a trim tool or equivalent, pull rearward on the seat back cushion panel to remove.

Callout

Component Name

Preliminary Procedures

Remove the child seat bracket trim cover. Refer to 3rd Row Seat Child Seat Bracket Replacement .
Remove the rear seat back cushion release handle bezel. Refer to Rear Seat Pull Strap Replacement .
Unzip the side zippers of the rear number 2 back trim cover.
Flip the carpet of the back trim over to expose the panel.

Rear Seat No. 2 Back Cushion Panel
TIP: Using a trim tool or equivalent, pull rearward on the seat back cushion panel to remove.
