3rd Row Seat Child Seat Bracket Replacement

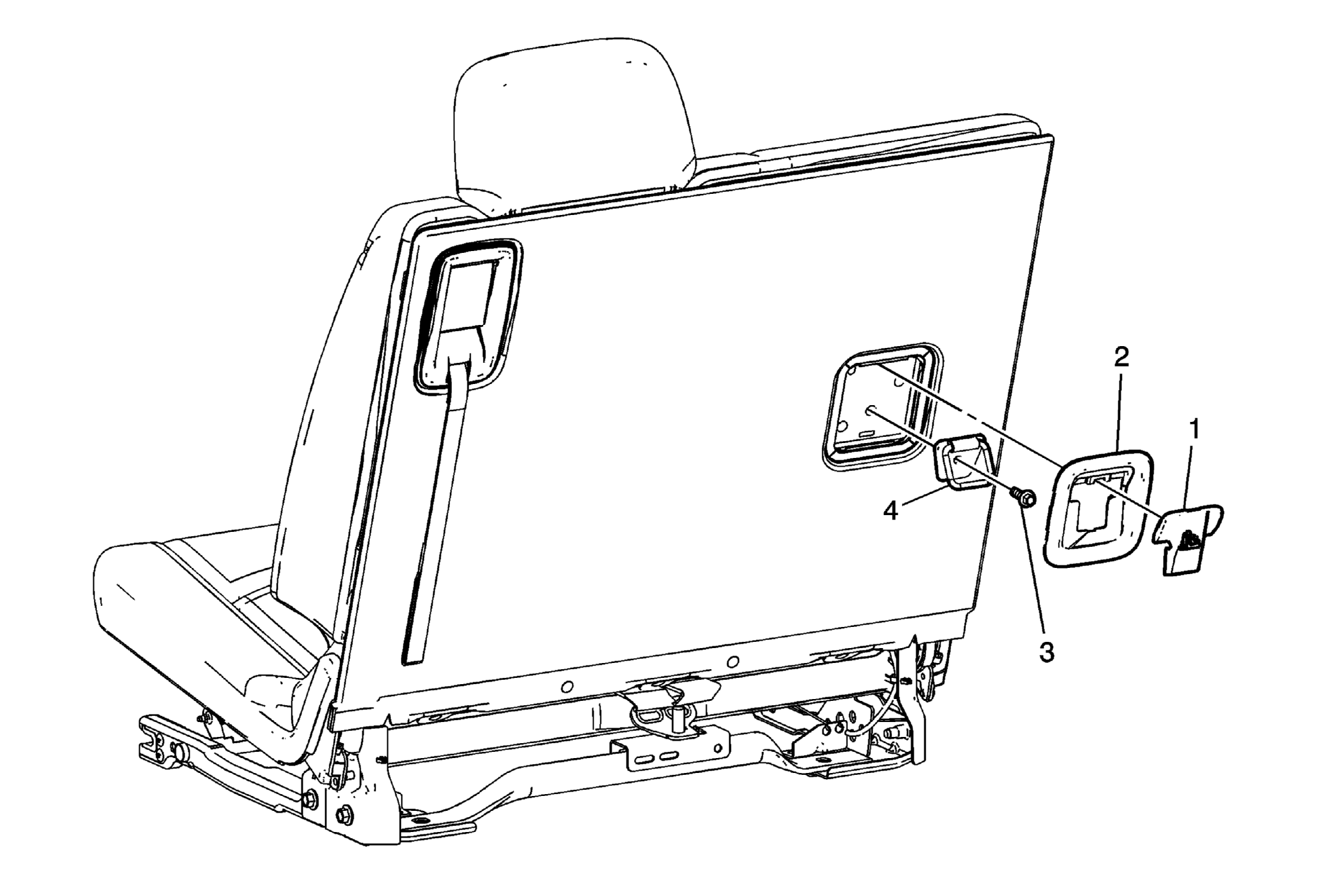

Fig 1: View Of Rear Seat Number 2 Child Seat Bracket

Courtesy of GENERAL MOTORS CORP.

3rd Row Seat Child Seat Bracket Replacement

Callout	Component Name
1	Rear Seat No. 2 Child Seat Bracket Trim Cover
2	Rear Seat No. 2 Child Seat Bracket Bezel
3	Rear Seat No. 2 Child Seat Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  30 N.m (22 lb ft)
4	Rear Seat No. 2 Child Seat Bracket
