Rear Seat Pull Strap Replacement
Rear Seat Pull Strap Replacement

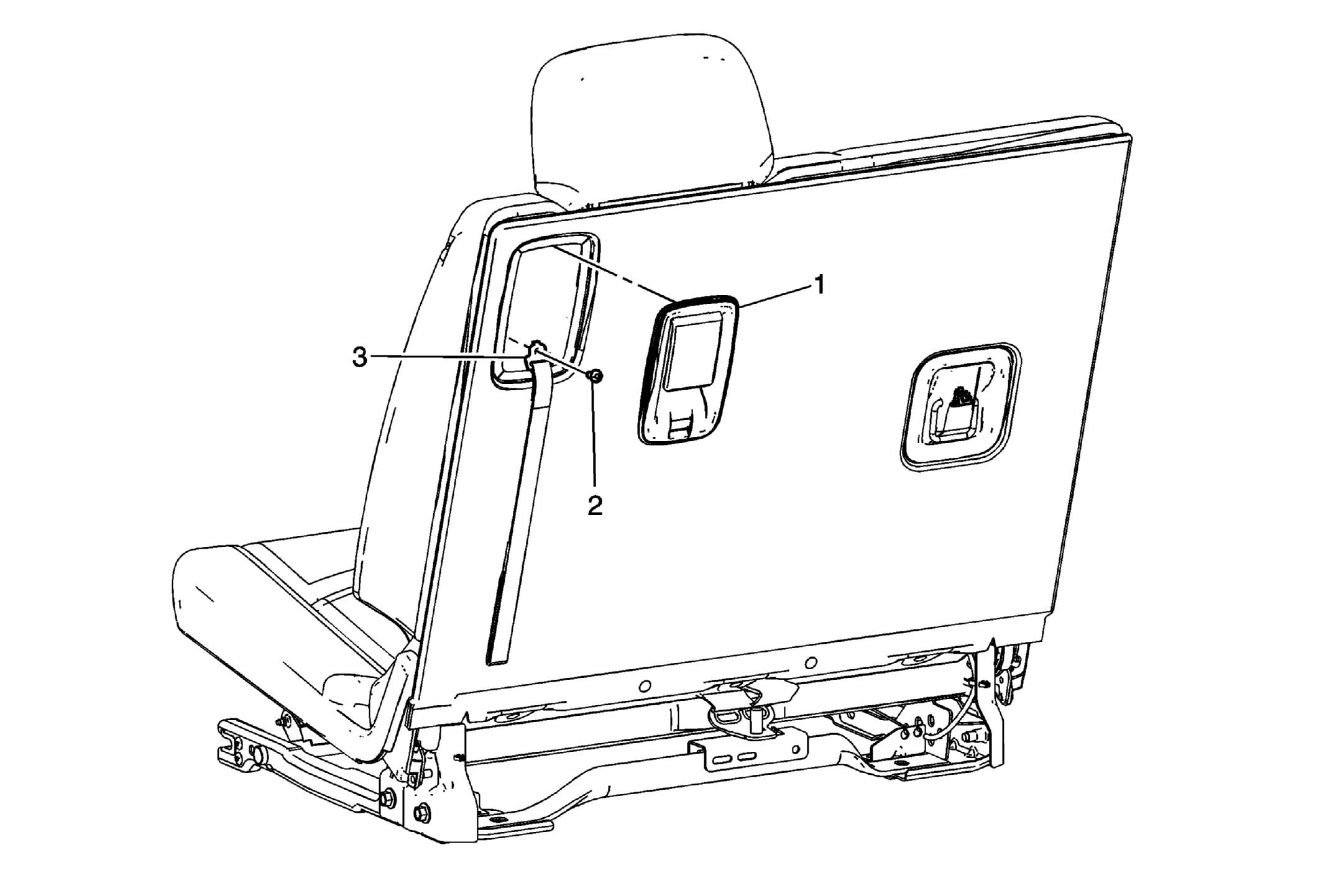

| Callout | Component Name |
|---|---|
| 1 | Rear Seat No. 2 Back Cushion Latch Release Handle Bezel Procedure Use a flat-bladed trim tool to release the bezel from the rear seat back and feed the pull strap through the bezel to remove. |
| 2 | Rear Seat Pull Strap Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Rear Seat Pull Strap |
