Front Side Door Garnish Molding Replacement (Enclave)
Front Side Door Garnish Molding Replacement (Enclave)

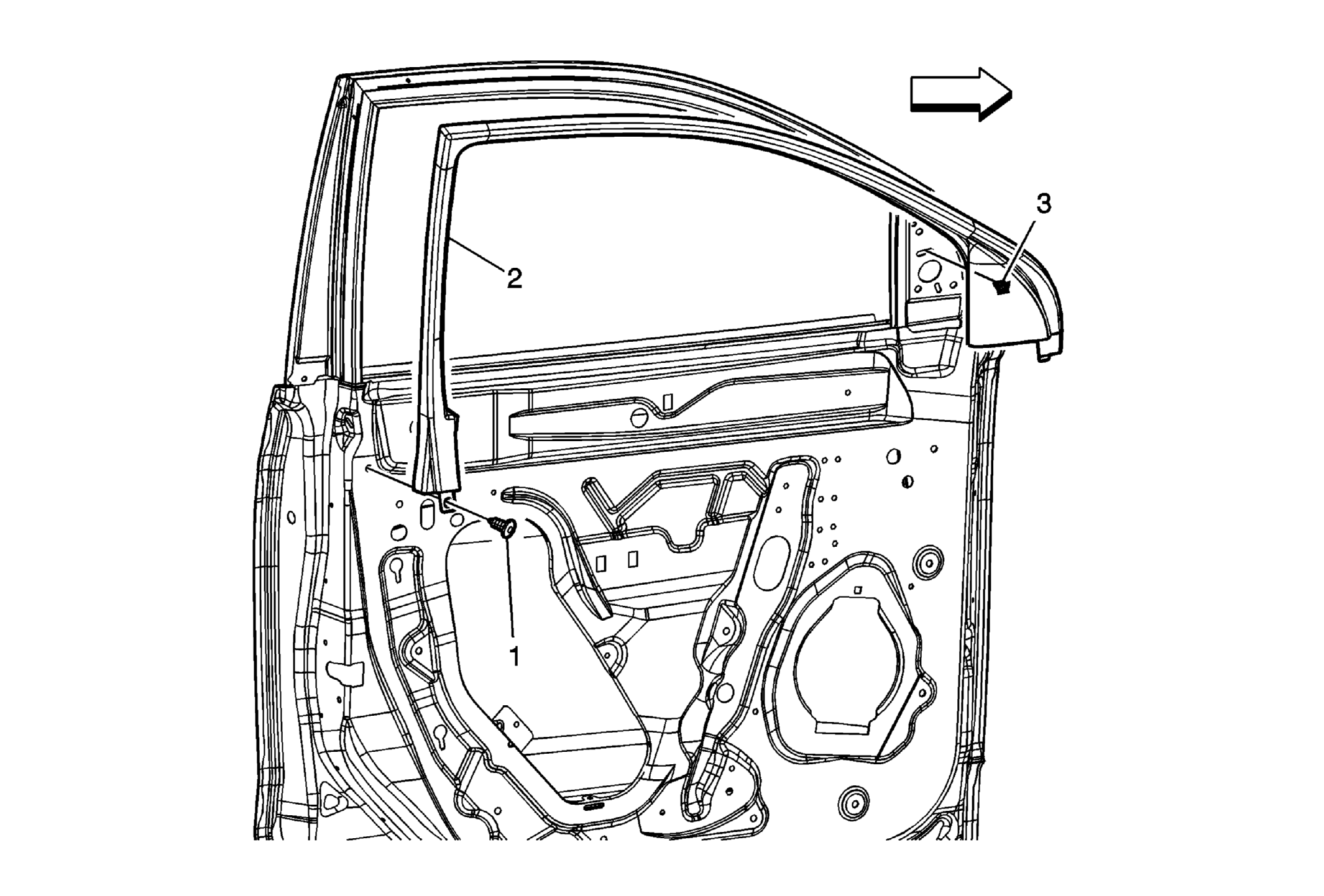

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Traverse) , Front Side Door Trim Panel Replacement - Left Side (Acadia) , Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Acadia) , Front Side Door Trim Panel Replacement - Right Side (Enclave) , Front Side Door Trim Panel Replacement - Right Side (Traverse) . |
|
| 1 | Front Side Door Garnish Molding Retainer TIP: Use a door trim panel removal tool or equivalent to aid in the removal of the retainer. |
| 2 | Front Side Door Garnish Molding TIP: Pull outward starting at the front and moving slowly rearward to remove the molding. |
| 3 | Front Side Door Garnish Molding Retainer Clip |
