Front Side Door Trim Panel Replacement - Right Side (Traverse)

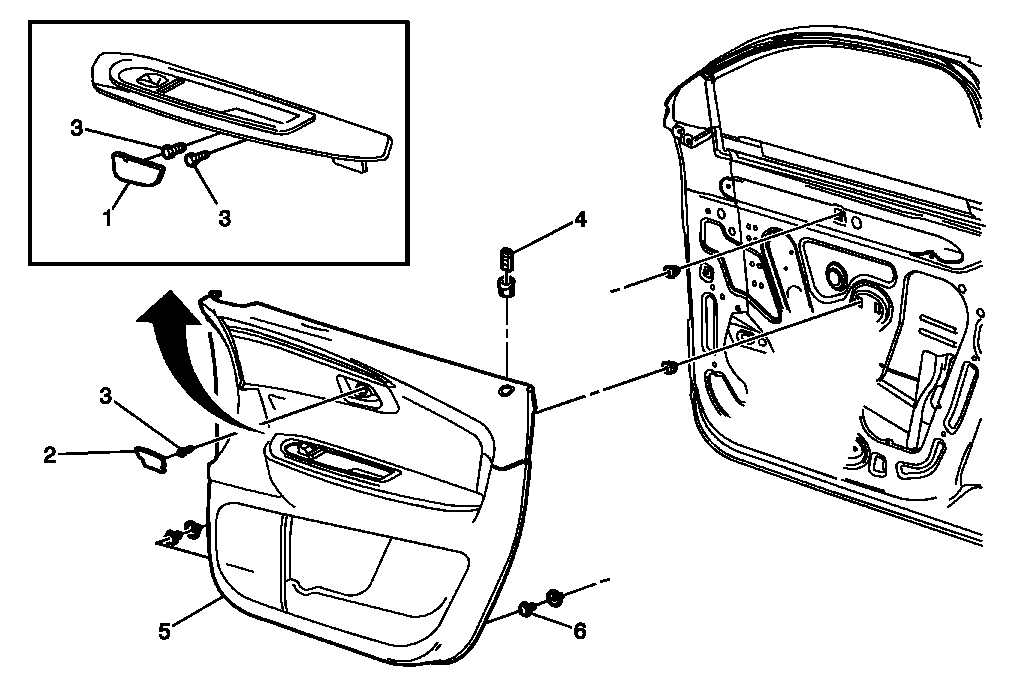

Courtesy of GENERAL MOTORS CORP. Front Side Door Trim Panel Replacement - Right Side (Traverse)
| Callout |
Component Name |
| 1 |
Front Side Door Pull Handle Cover |
| 2 |
Front Side Door Inside Handle Bezel Finish Cover |
| 3 |
Front Side Door Trim Panel Bolt (Qty: 3)
Tighten
2 N.m (18 lb in) |
| 4 |
Front Side Door Locking Rod Knob Assembly Procedure
- Ensure the locking rod is in the unlocked position.
- Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward.
- When re-installing, push the knob down until the detent tab touches the locking rod opening cover.
- Push the detent tab into the lock knob to locking rod.
|
| 5 |
Front Side Door Trim Panel Assembly Procedure
- Use a door trim pad removal tool, or equivalent, at each of the 9 retainer locations to aid in the removal of the trim panel.
- Disengage the door lock cable.
- Disconnect the electrical connector.
- Transfer parts as necessary.
- For programming and setup information, refer to Control Module References
.
|
| 6 |
Front Side Door Trim Panel Retainer (Qty: 9) |
