Front Side Door Trim Panel Replacement - Left Side (Acadia)

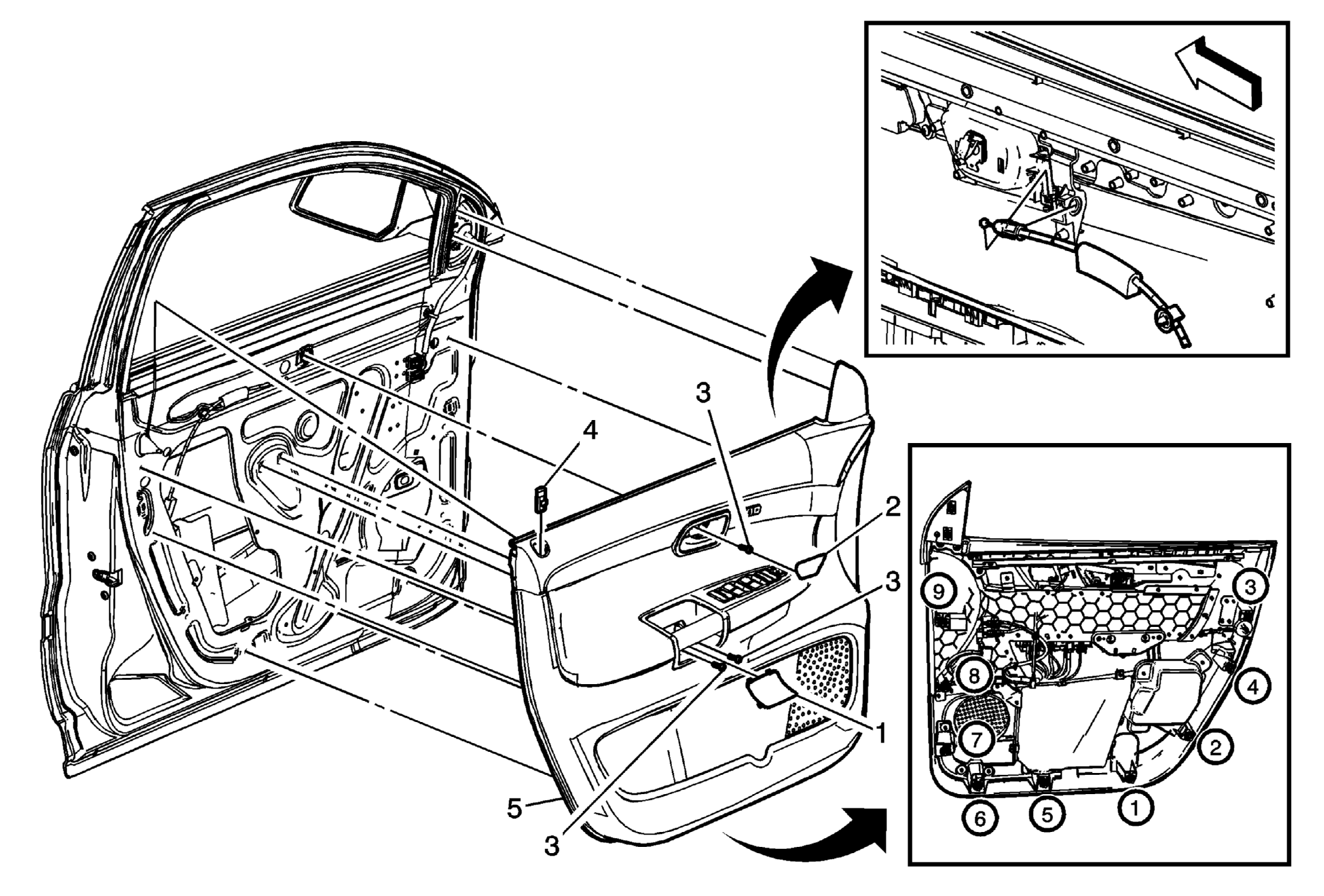

Fig 1: Front Side Door Trim Panel - Left Side (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Pull Handle Cover
2	Front Side Door Inside Handle Bezel Finish Cover
3	Front Side Door Trim Panel Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (18 lb in)
4	Front Side Door Locking Rod Knob Assembly Procedure Ensure the locking rod is in the unlocked position. Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward. When re-installing, push the knob down until the detent tab touches the locking rod opening cover. Push the detent tab into the lock knob to locking rod.
5	Front Side Door Trim Panel Assembly Procedure Use a door trim pad removal tool, or equivalent, at each of the 9 retainer locations to aid in the removal of the trim panel. Disengage the door lock cable. Disconnect the electrical connector. For programming and setup information, refer to Control Module References .
6	Front Side Door Trim Panel Retainer (Qty: 9)
