Rear Spoiler Replacement (Enclave, Traverse)

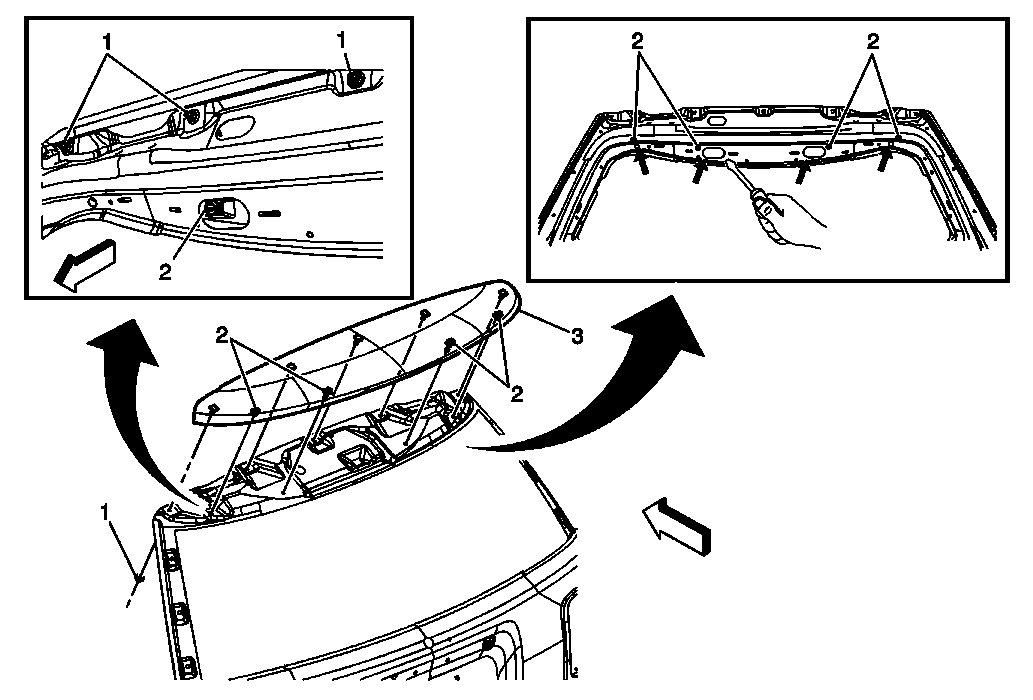

Fig 1: Identifying Rear Spoiler Components (Enclave, Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open the rear liftgate. Remove the interior liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement (TB4) , Liftgate Garnish Molding Replacement (TB5) . Disconnect the center high mounted stop lamp electrical connector. Disconnect the rear window washer nozzle hose from the bottom side of the rear spoiler and washer nozzle spout.
1	Rear End Spoiler Assembly Nut (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear End Spoiler Assembly Integral Retainer (Qty: 4) Procedure Insert a flat-bladed tool into the access holes in the inner liftgate panel in order to release the clips while lifting up on the outside edges of the rear spoiler. Release the integral clips from across the upper liftgate flange working from the outboard edge inward. Transfer the rear window washer nozzle.
3	Rear End Spoiler Assembly TIP: Remove and transfer the high mounted stop lamp. Refer to High Mount Stop Lamp Replacement (Acadia) , High Mount Stop Lamp Replacement (Traverse) , High Mount Stop Lamp Replacement (Enclave) .
