Liftgate Garnish Molding Replacement (TB4)
Liftgate Garnish Molding Replacement (TB4)

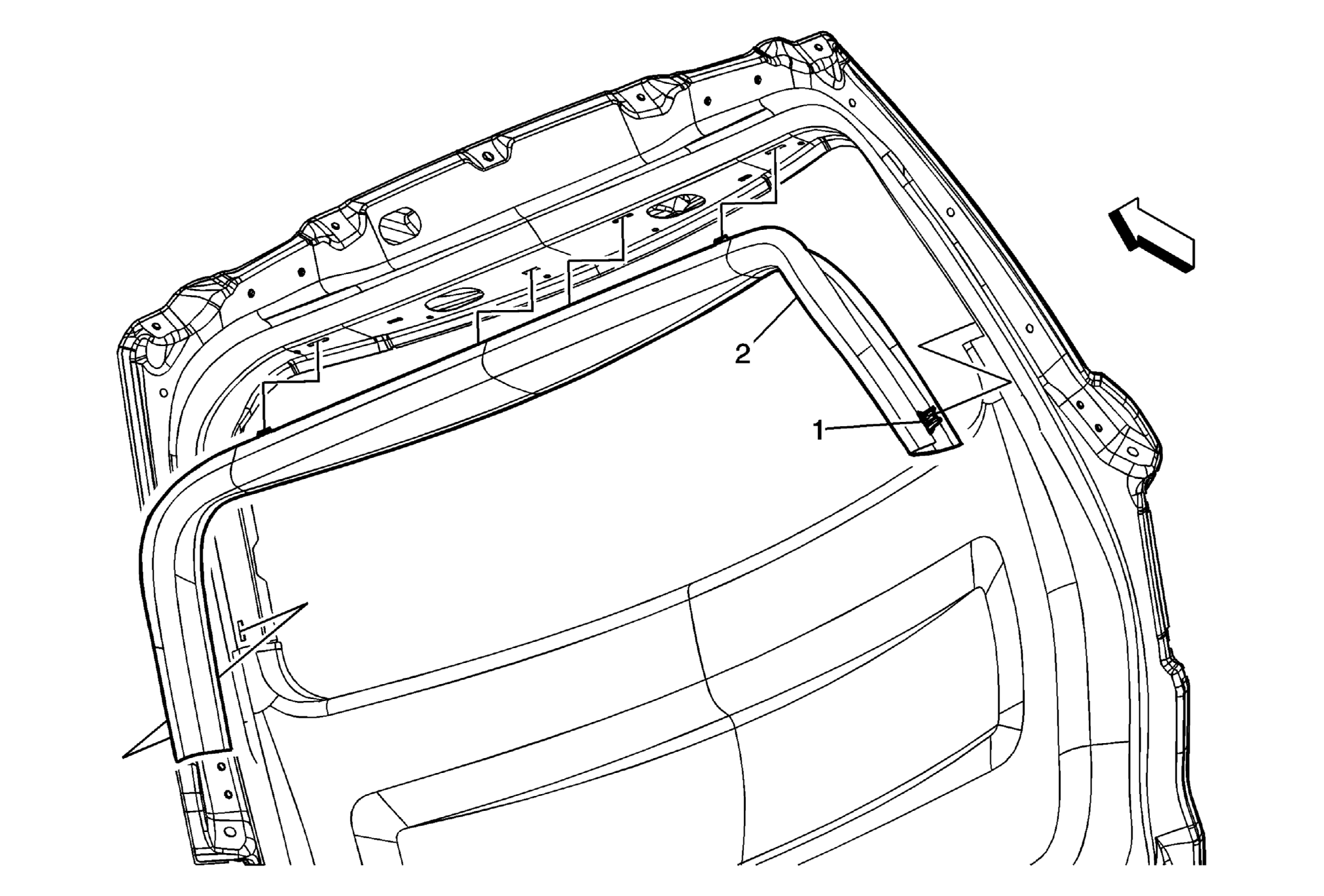

Fig 1: Liftgate Garnish Molding (TB4)
Courtesy of GENERAL MOTORS CORP.
Liftgate Garnish Molding Replacement (TB4)
Callout
Component Name
1
Liftgate Upper Trim Finish Panel Retainer (Qty: 6)
2
Liftgate Upper Trim Finish Panel Assembly
Courtesy of GENERAL MOTORS CORP.
