Liftgate Garnish Molding Replacement (TB5)

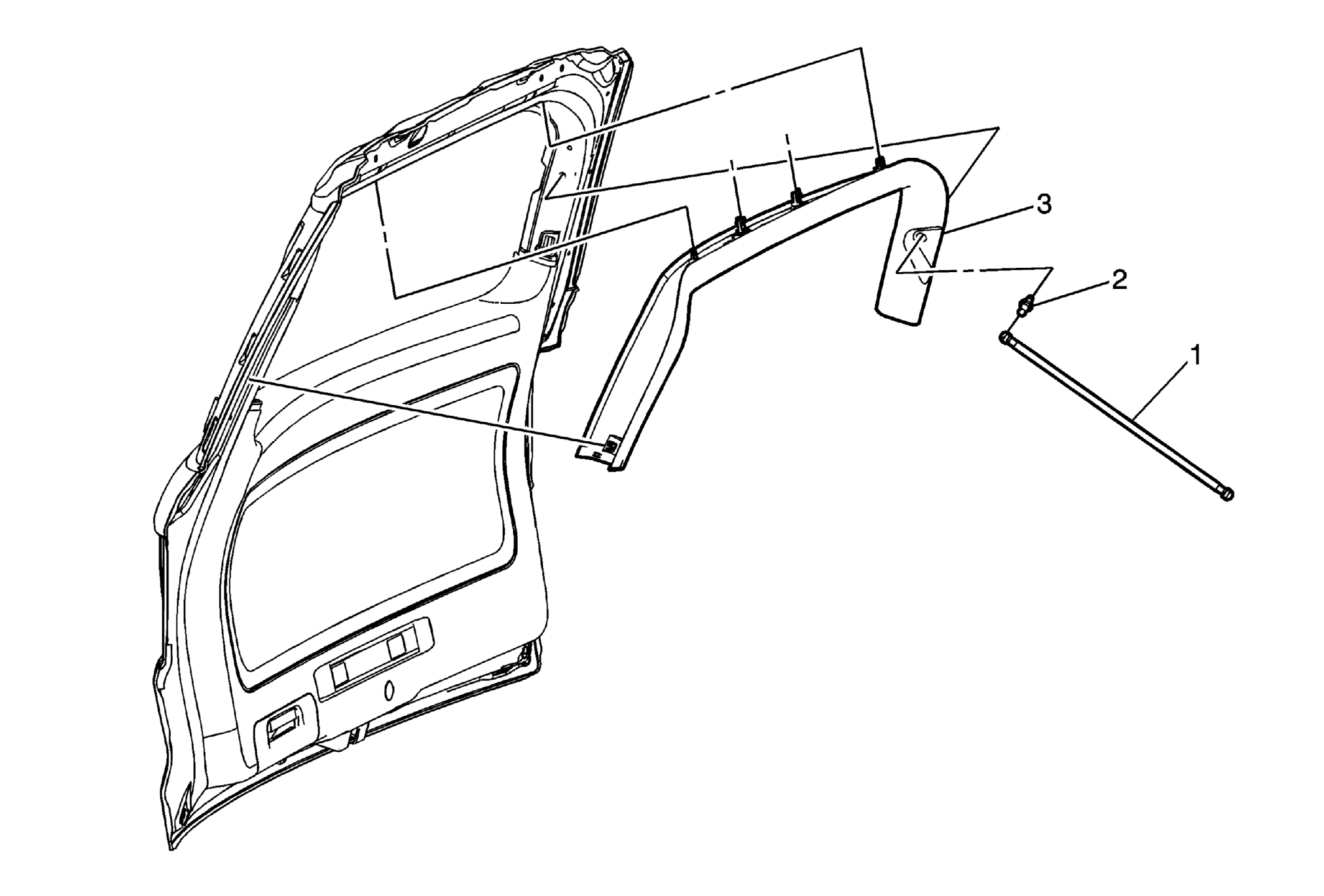

Fig 1: Liftgate Garnish Molding (TB5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Actuator Rod
2	Liftgate Actuator Rod Stud CAUTION: Refer to Fastener Caution . Procedure Unclip the rod from the stud. Tighten 20 N.m (15 lb ft)
3	Liftgate Upper Trim Finish Panel Assembly
