Front Fog Lamp Replacement (Acadia)

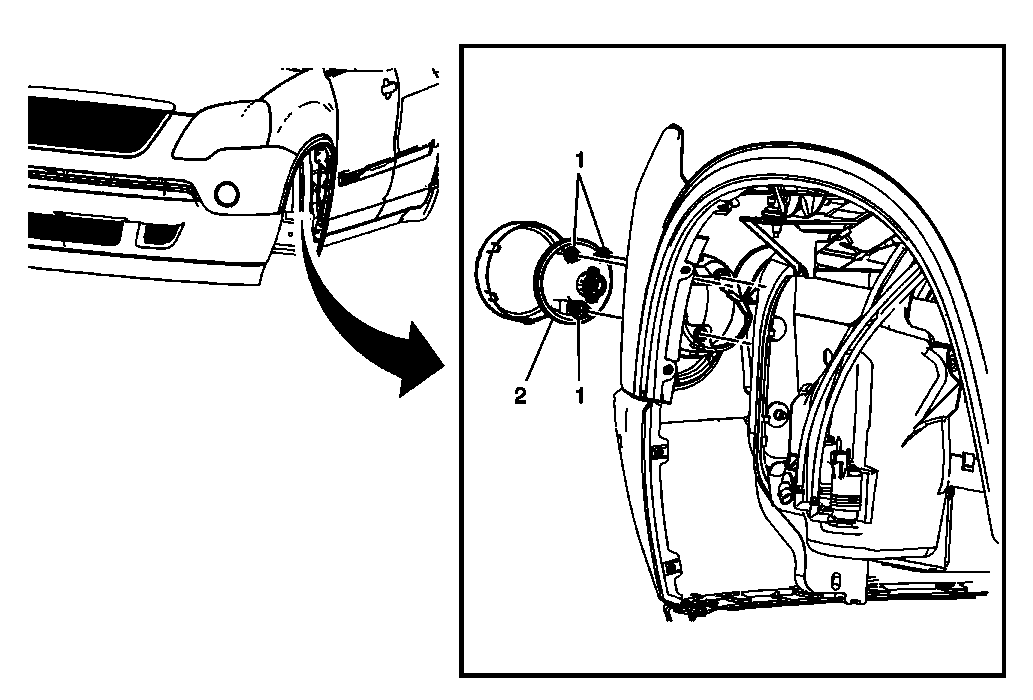

Fig 1: Front Fog Lamp (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) . Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement (Acadia) , Front Fog Lamp Bezel Replacement (Enclave) . Disconnect the electrical connector. From the inside of the front bumper fascia, using a blunt instrument, pinch the retainers and push outward on the 2 upper mounting studs for the fog lamp. Using the same blunt instrument, pinch the retainer and push outward on the adjustment screw for the fog lamp.
1	Fog Lamp Retainer (Qty: 3) Procedure Ensure the retainers are repositioned into the front bumper fascia mounting holes prior to the installation of the new fog lamp if they become dislodged during the removal of the lamp.
2	Fog Lamp Assembly WARNING: Refer to Halogen Bulb Warning . Procedure Remove the bulb socket from the lamp assembly and transfer as necessary.

Callout

Component Name

Preliminary Procedures

Remove the wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement (Acadia) , Front Fog Lamp Bezel Replacement (Enclave) .
Disconnect the electrical connector.
From the inside of the front bumper fascia, using a blunt instrument, pinch the retainers and push outward on the 2 upper mounting studs for the fog lamp.
Using the same blunt instrument, pinch the retainer and push outward on the adjustment screw for the fog lamp.

Fog Lamp Retainer (Qty: 3)
Procedure
Ensure the retainers are repositioned into the front bumper fascia mounting holes prior to the installation of the new fog lamp if they become dislodged during the removal of the lamp.

Fog Lamp Assembly

WARNING:

Refer to Halogen Bulb Warning .

Procedure
Remove the bulb socket from the lamp assembly and transfer as necessary.
