Front Fog Lamp Bezel Replacement (Acadia)
Front Fog Lamp Bezel Replacement (Acadia)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the wheelhouse liner in order to access the rear of the front fog lamp. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) . |
|

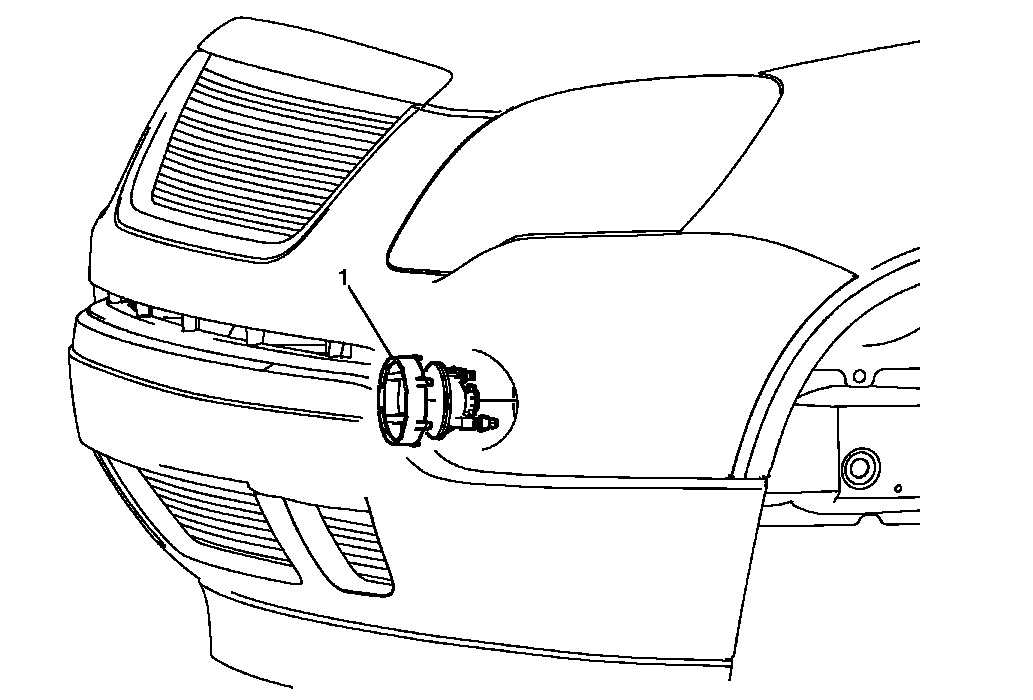

| 1 | Front Fog Lamp Bezel Procedure Release the tabs securing the bezel to the front upper bumper fascia fog lamp opening. Push the bezel outward from inside the fascia in order to remove. |
