Rear Seat Support Replacement (with Armrest)

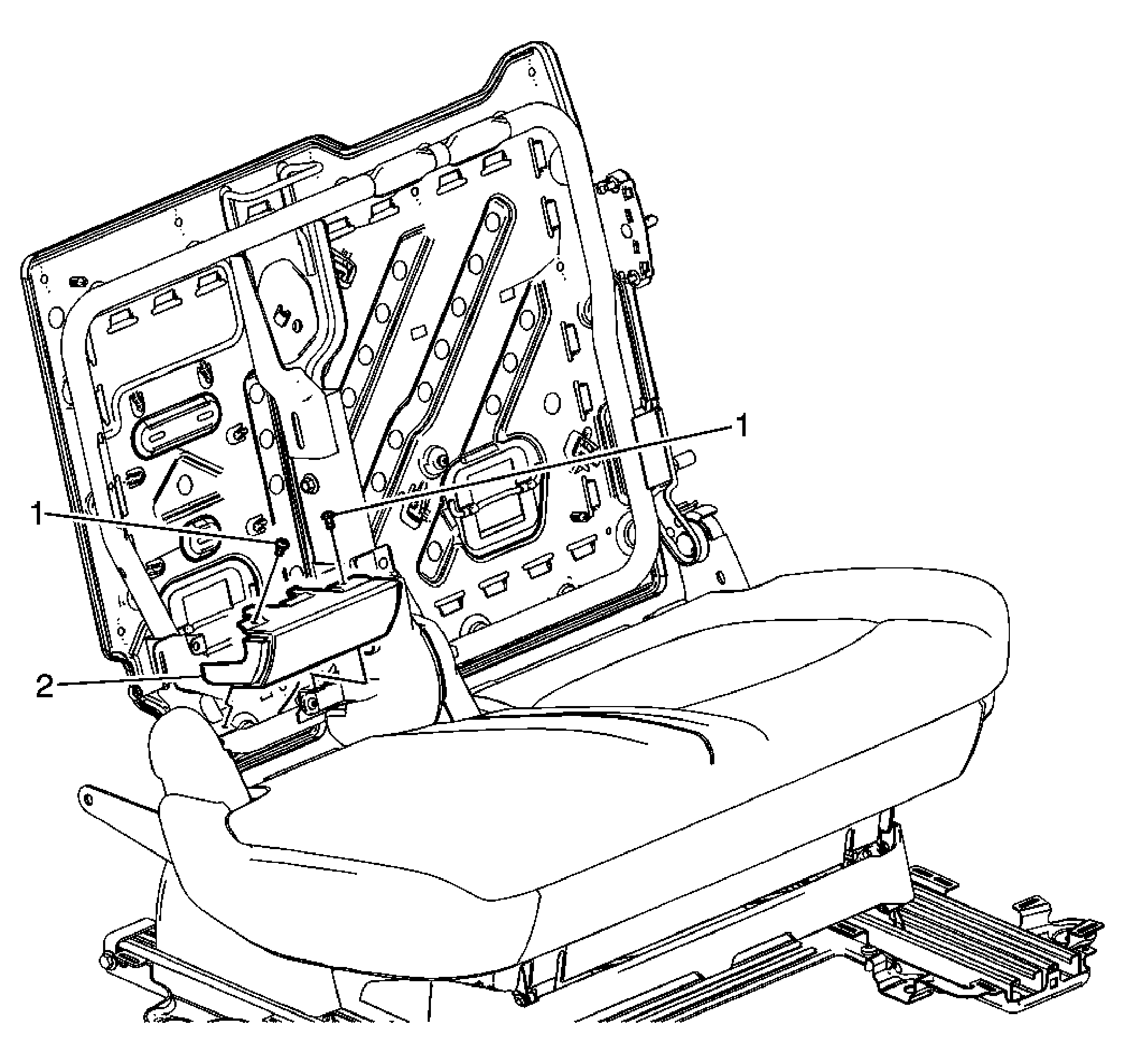

Fig 1: Identifying Rear Seat Support (With Armrest)
GM1853393Courtesy of GENERAL MOTORS CORP.
Rear Seat Support Replacement (with Armrest)

Callout Component Name

Preliminary Procedures

  1. Remove the rear seat . Refer to Rear Seat Replacement (With 40 Percent Seat) , Rear Seat Replacement (With 60 Percent Seat) .
  2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with 60 Percent Seat) , Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat without Armrest) , Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat with Armrest) .
1 Rear Seat Support Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Rear Seat Support
