Rear Seat Replacement (With 60 Percent Seat)

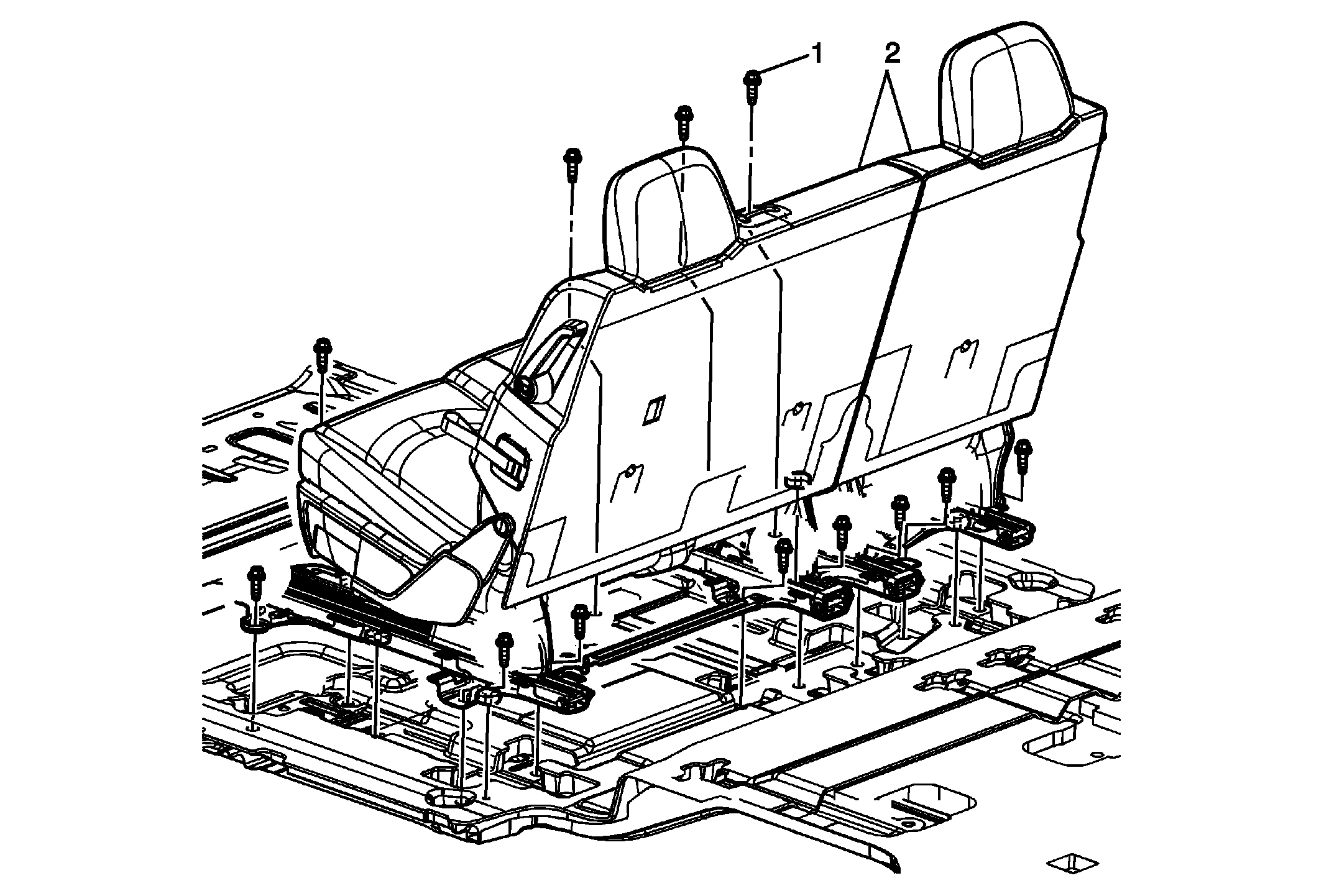

Fig 1: Identifying Rear Seat (With 60 Percent Seat)

Courtesy of GENERAL MOTORS CORP.

Rear Seat Replacement (With 60 Percent Seat)

Callout	Component Name
Preliminary Procedure  Remove the rear seat track covers. Refer to Rear Seat Track Front Inboard Cover, Front Outboard Cover, Rear Inboard Cover, and Rear Outboard Cover Replacement .
1	Rear Seat No. 1 Assembly Bolt (Qty: 12) CAUTION: Refer to Fastener Caution . Tighten  55 N.m (41 lb ft)
2	Rear Seat Assembly (Qty: 2)
