Driver or Passenger Seat Lumbar Support Replacement

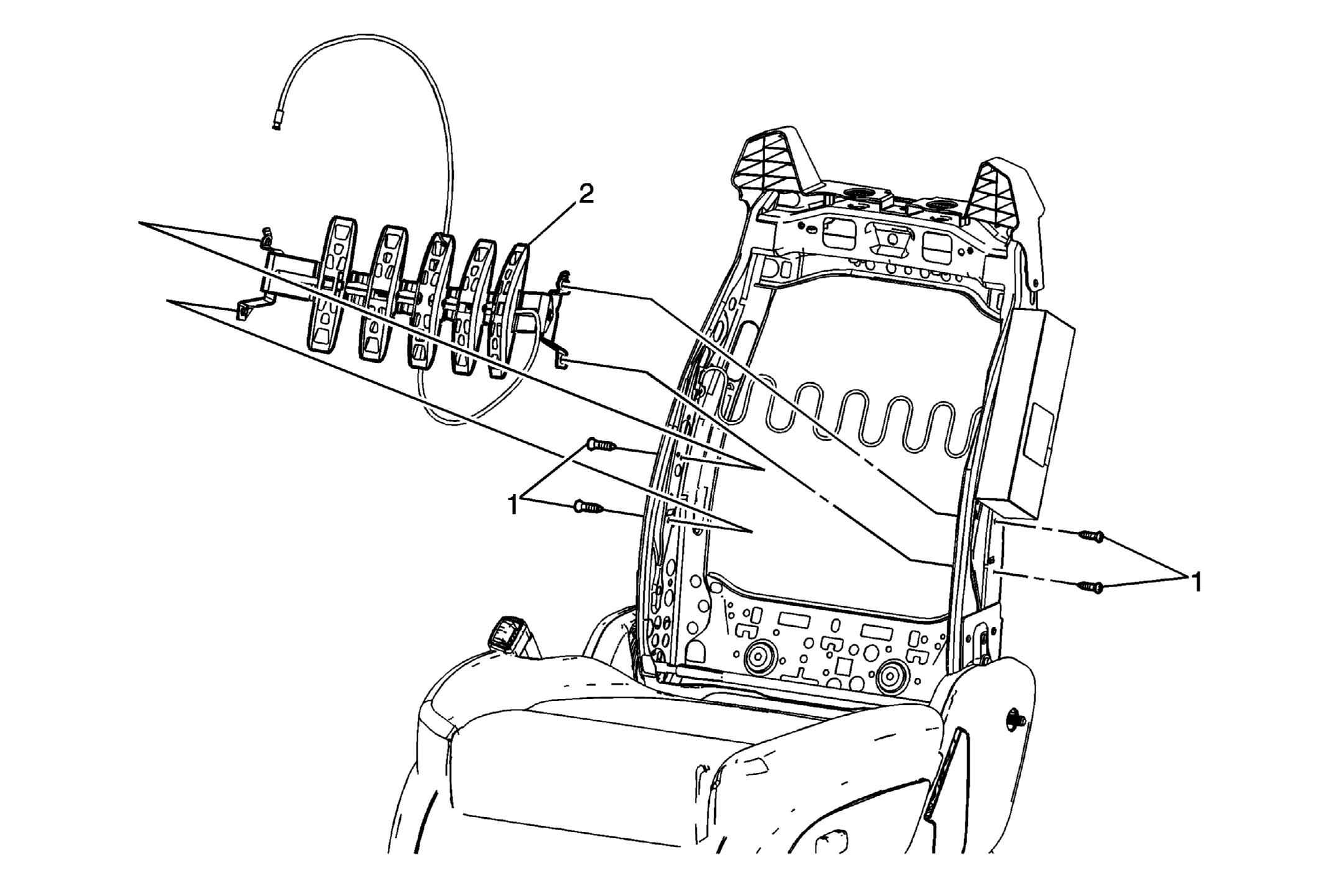

Fig 1: View Of Front Seat Lumbar Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement . Remove the front seat lumbar control. Refer to Front Seat Lumbar Control Replacement .
1	Front Seat Lumbar Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Seat Lumbar Assembly

Callout

Component Name

Preliminary Procedure

Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
Remove the front seat lumbar control. Refer to Front Seat Lumbar Control Replacement .

Front Seat Lumbar Assembly Bolt (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Seat Lumbar Assembly
