Front Seat Lumbar Control Replacement
Front Seat Lumbar Control Replacement

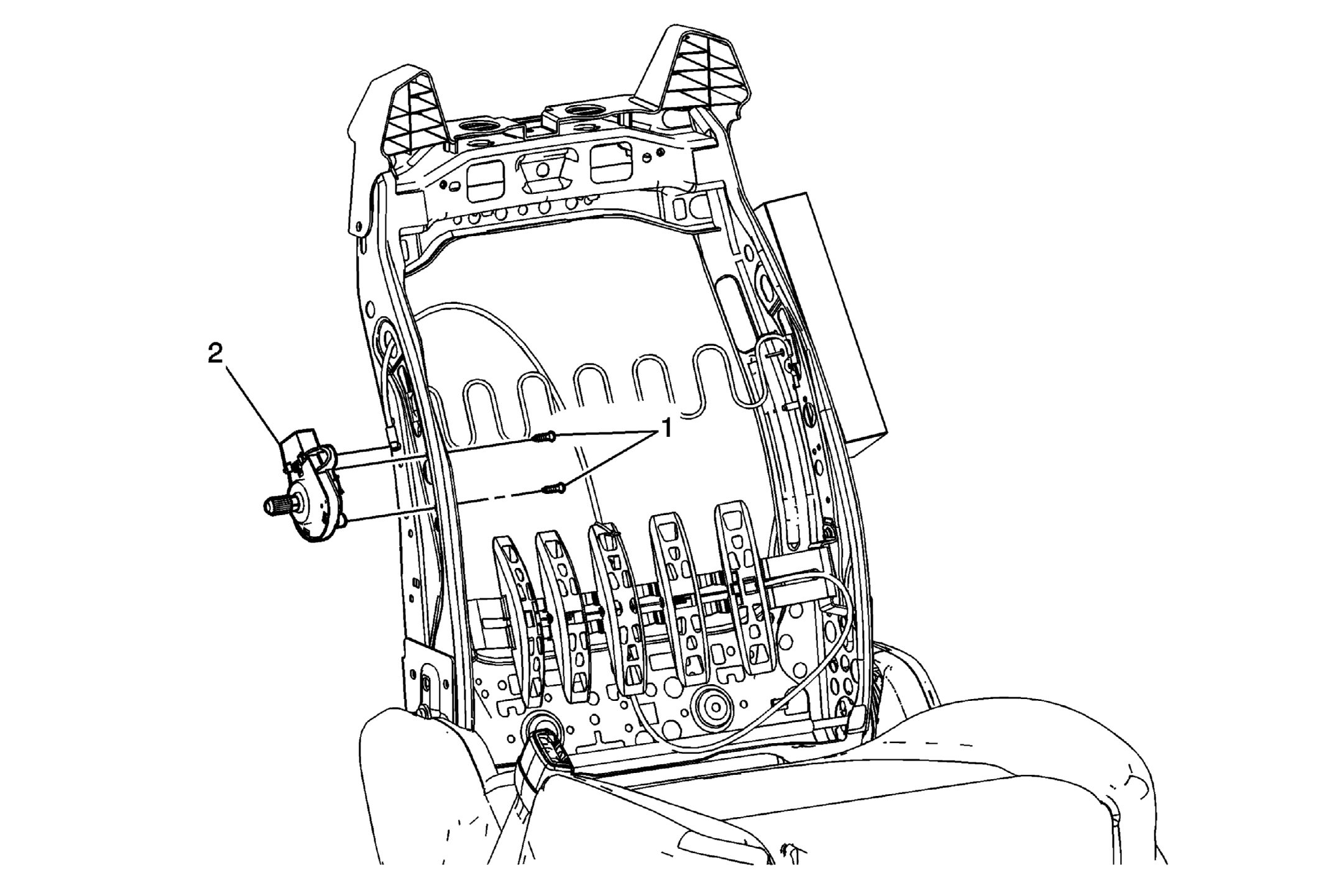

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement . |
|
| 1 | Front Seat Lumbar Control Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Front Seat Lumbar Control Procedure Disconnect the lumbar cable from the control assembly for removal. |
