Turbocharger Oil Return Pipe Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

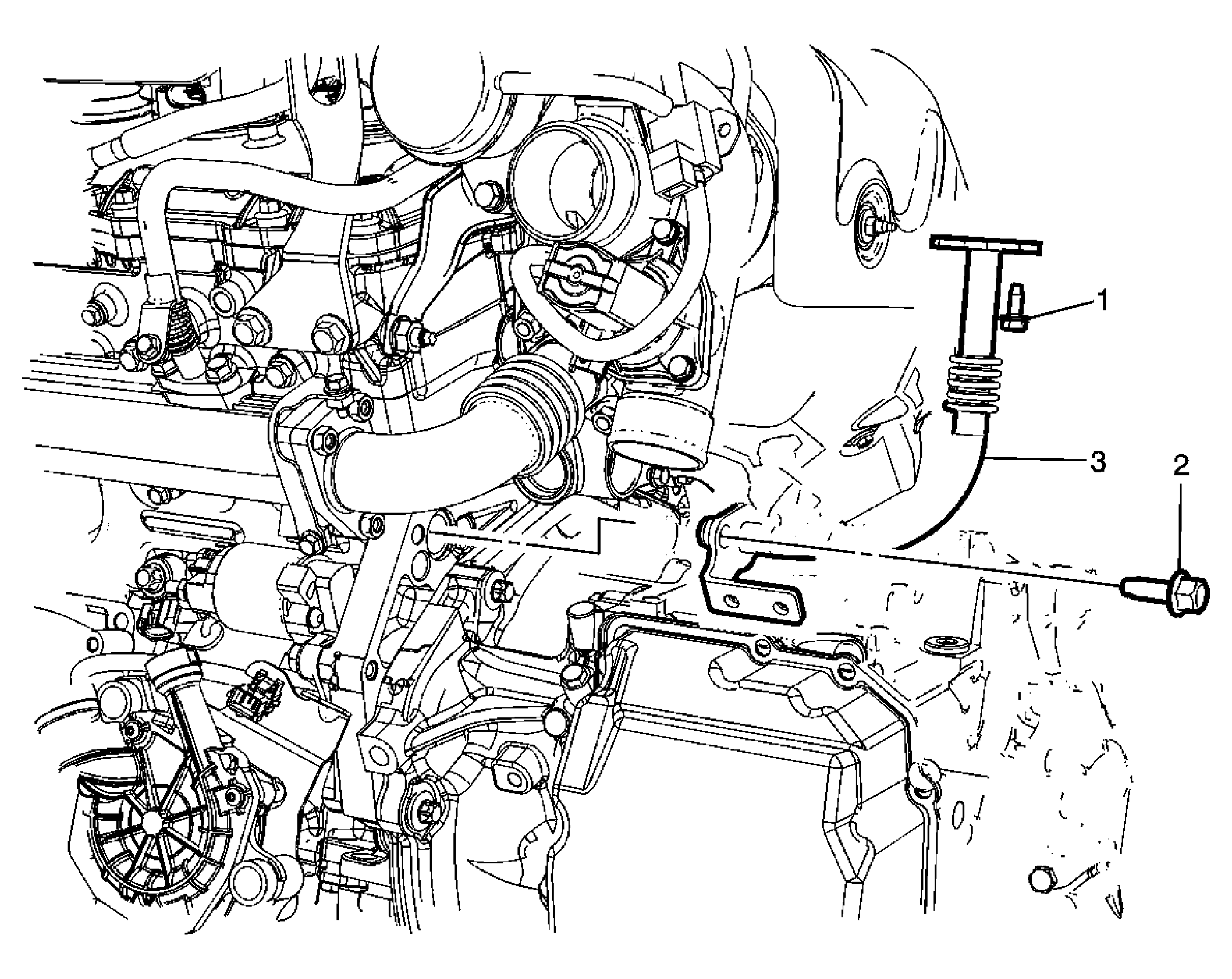

Fig 1: Identifying Turbocharger Oil Return Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the charge air cooler Inlet duct. Refer to Charge Air Cooler Inlet Duct Replacement . Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (LAU) . Remove the radiator outlet pipe. Refer to Radiator Outlet Pipe Replacement (LAU) . Remove the turbocharger oil feed pipe. Refer to Turbocharger Oil Feed Pipe Replacement . Remove the turbocharger coolant feed pipe. Refer to Turbocharger Coolant Feed Pipe Replacement (LAU) .
1	Turbocharger Oil Return Pipe Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Ensure to install a NEW turbocharger oil return pipe gasket whenever is the pipe is removed. Tighten: 14 N.m (11 lb ft)
2	Turbocharger Oil Return Pipe Fastener Procedure: Ensure to Install a NEW turbocharger oil return pipe seal whenever is the pipe is removed. Tighten: 65 N.m (48 lb ft)
3	Turbocharger Oil Return Pipe Procedure: Transfer parts as necessary.
