Turbocharger Oil Feed Pipe Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

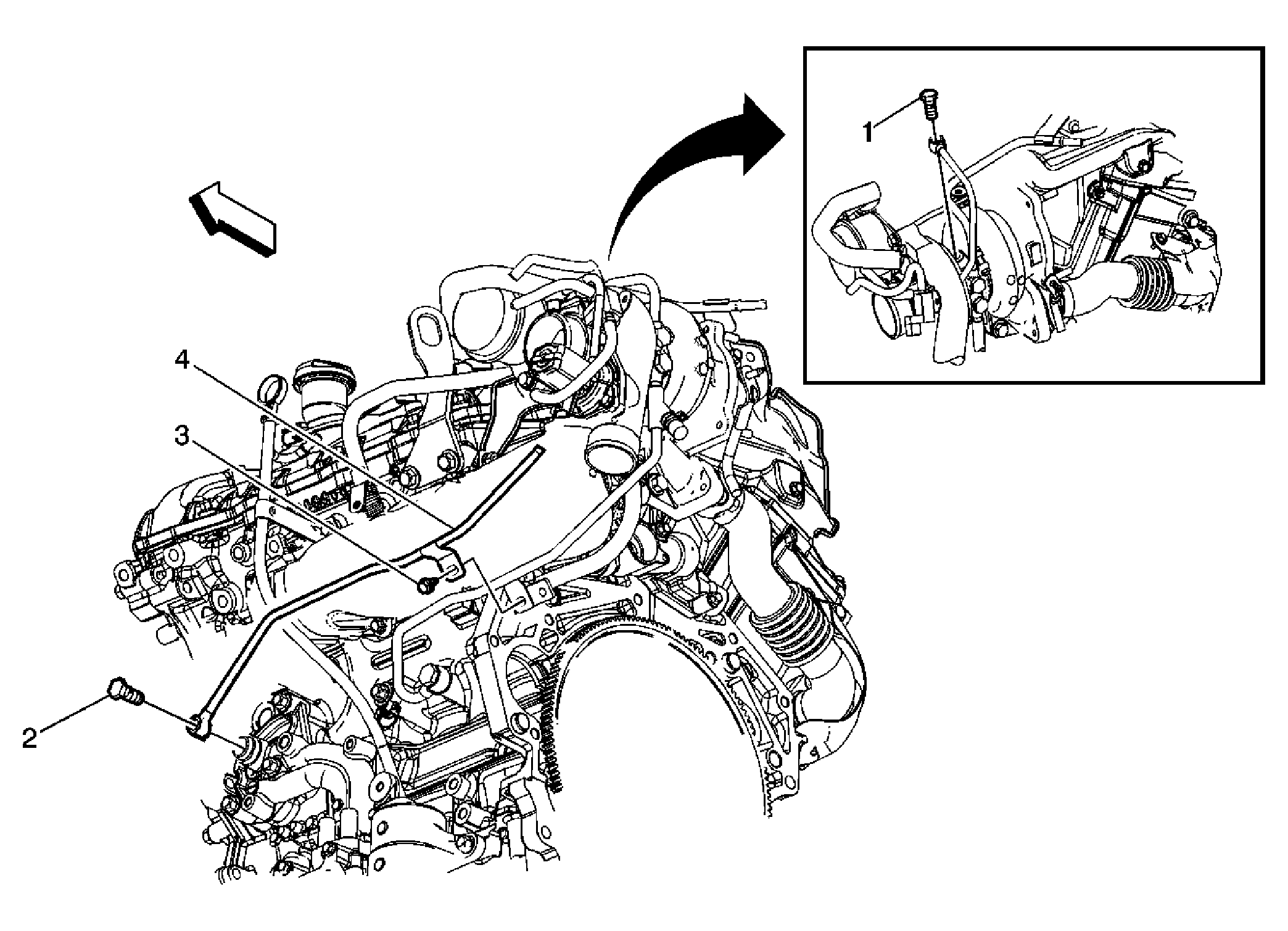

Fig 1: Identifying Turbocharger Oil Feed Pipe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the battery positive cable on the B+ stud at the back of the generator. Refer to Generator Replacement (LF1) or Generator Replacement (LAU) . Remove the left exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (LAU) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . If necessary, remove the engine oil cooler outlet hose. Refer to Engine Oil Cooler Outlet Hose Replacement (LAU) .
1	Banjo Bolt CAUTION: Refer to Fastener Caution . Tighten: 35 N.m (26 lb ft)
2	Banjo Bolt Tighten: 35 N.m (26 lb ft)
3	Turbocharger Oil Feed Pipe Bracket Bolt Tighten: 10 N.m (89 lb in)
4	Turbocharger Oil Feed Pipe
