Front Side Door Outside Handle Housing Replacement

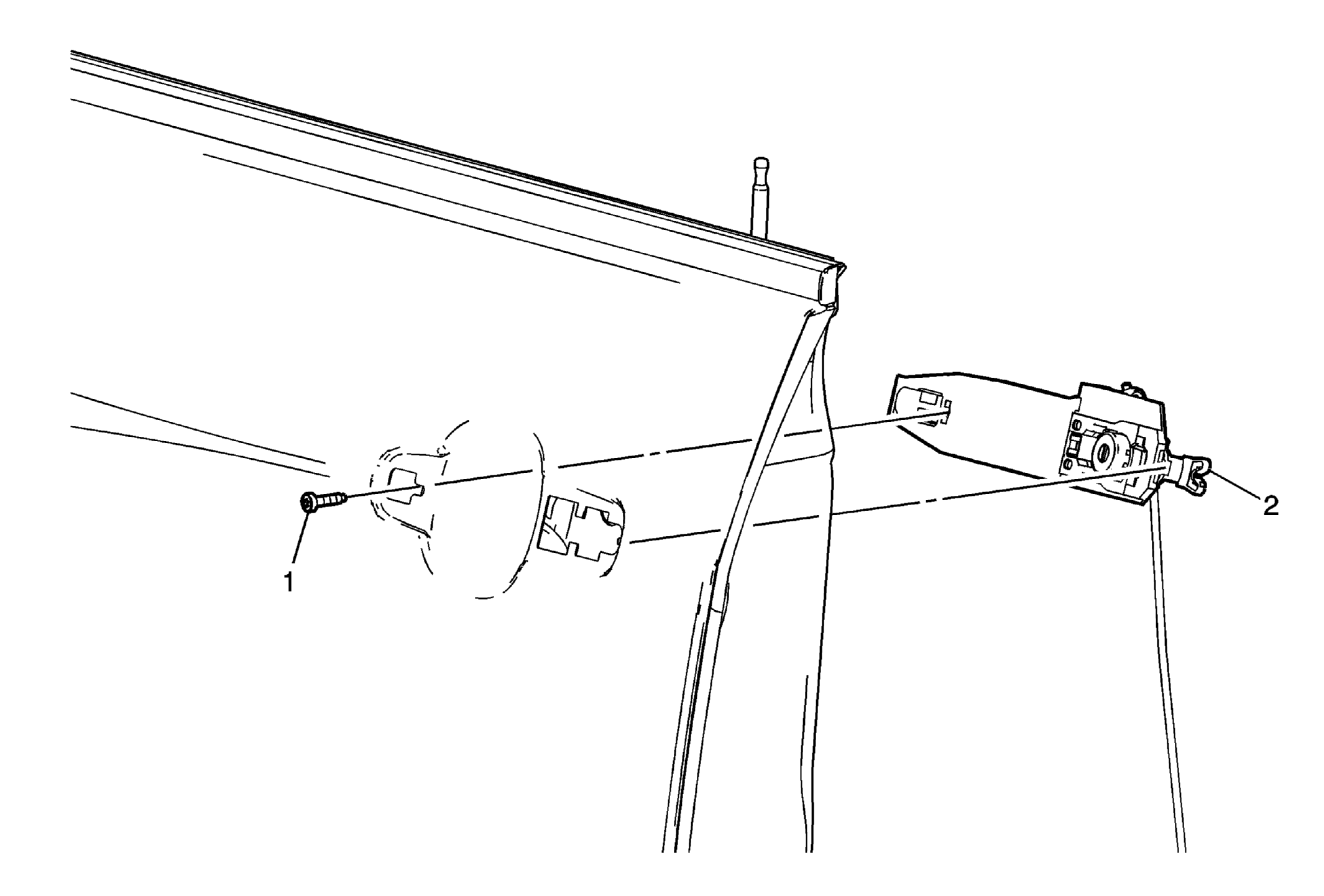

Fig 1: View Of Front Side Door Outside Handle Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Acadia) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement .
1	Front Side Door Handle Housing Bolt NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in)
2	Front Side Door Handle Housing Procedure Disconnect the lock and handle rods to remove the housing. Release the inside handle cable retainers before removing the door lock. Disconnect the door lock electrical connector. Transfer the lock cylinder to the new housing. Refer to Door Lock Cylinder Replacement .

Callout

Component Name

Preliminary Procedures

Front Side Door Handle Housing Bolt

NOTE: Refer to Fastener Notice .

Tighten: 7 N.m (62 lb in)

Front Side Door Handle Housing

Procedure

Disconnect the lock and handle rods to remove the housing.
Release the inside handle cable retainers before removing the door lock.
Disconnect the door lock electrical connector.
Transfer the lock cylinder to the new housing. Refer to Door Lock Cylinder Replacement .
