Door Lock Cylinder Replacement

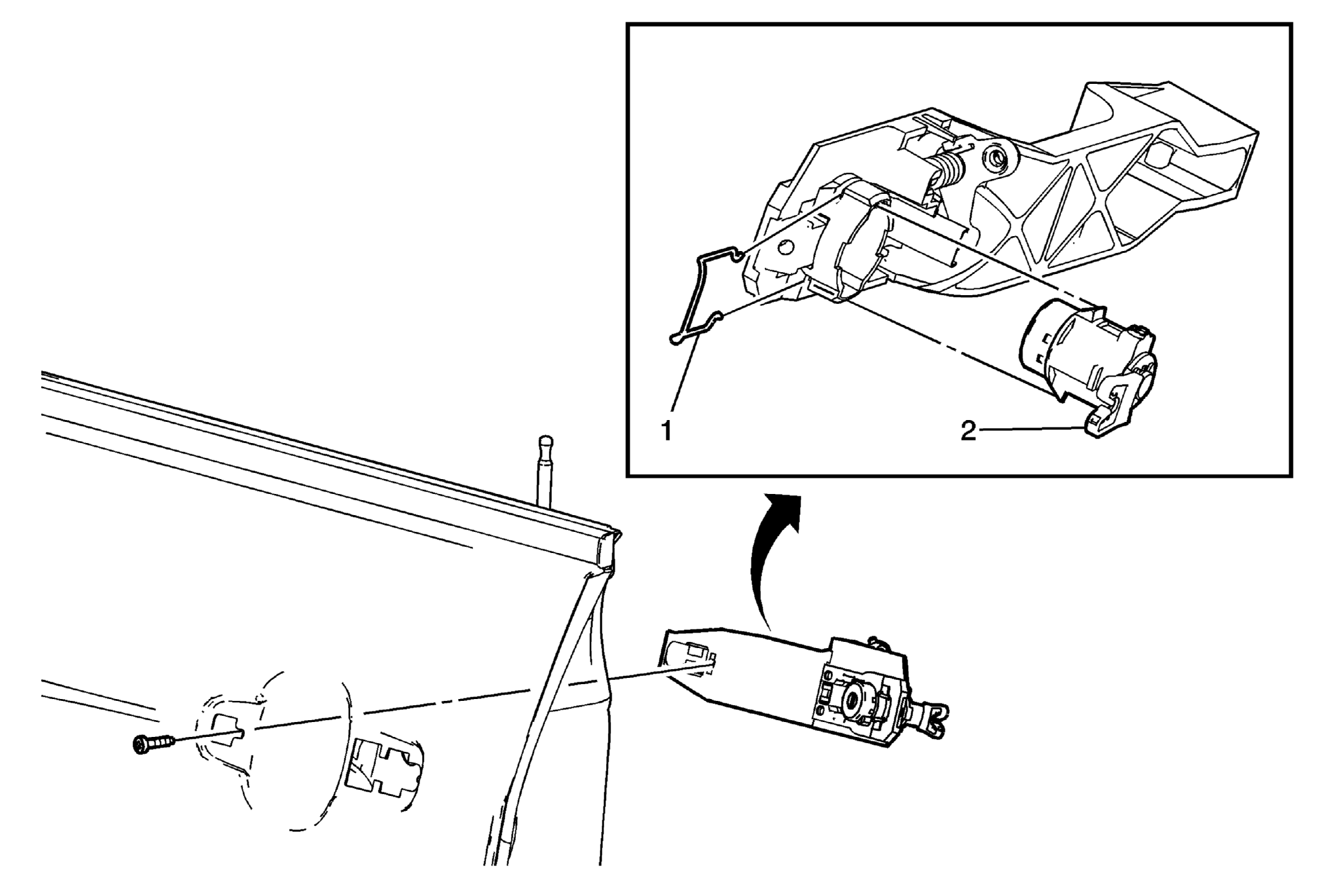

Fig 1: View Of Door Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Enclave) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Acadia) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the outside door handle. Refer to Front Side Door Outside Handle Replacement . Remove the front side door outside handle housing. Refer to Front Side Door Outside Handle Housing Replacement .
1	Lock Cylinder Clip Tip: Use a flat-bladed tool to remove the clip.
2	Front Door Lock Cylinder Tip: Pull the lock cylinder from the housing to remove.

Callout

Component Name

Preliminary Procedures

Lock Cylinder Clip
Tip: Use a flat-bladed tool to remove the clip.

Front Door Lock Cylinder
Tip: Pull the lock cylinder from the housing to remove.
