Hood Stop Bumper Bracket Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

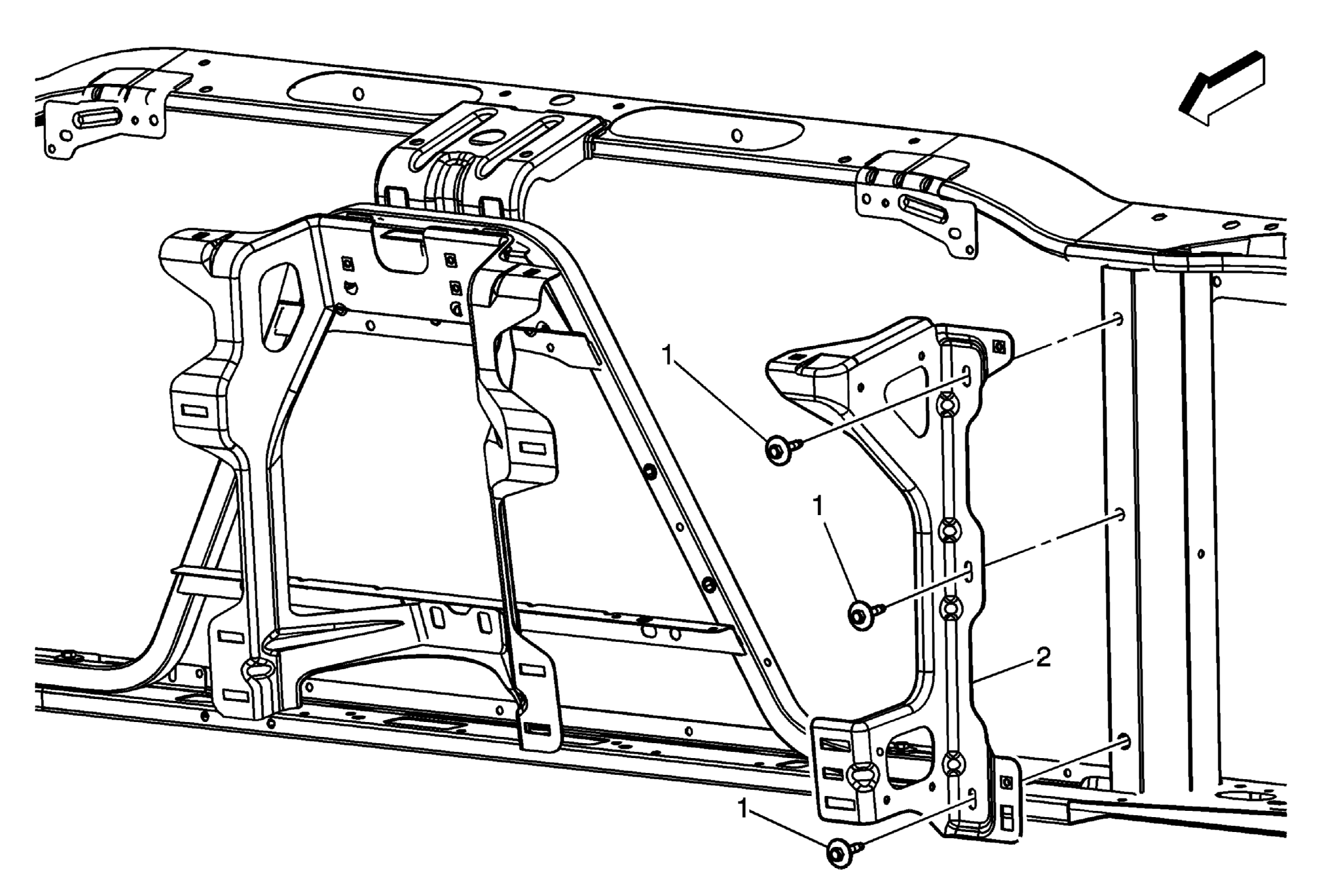

Fig 1: Hood Stop Bumper Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator grille. Refer to Radiator Grille Replacement (Chevrolet) or Radiator Grille Replacement (GMC) or Radiator Grille Replacement (Chevrolet HD) or Radiator Grille Replacement (GMC HD) . Remove the headlamp. Refer to Headlamp Replacement (Chevrolet) or Headlamp Replacement (GMC ) or Headlamp Replacement (HD Diesel) .
1	Hood Stop Bumper Bracket Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Hood Stop Bumper Bracket Tip: Unclip radiator air baffles from stop bracket.

Callout

Component Name

Preliminary Procedures

Remove the radiator grille. Refer to Radiator Grille Replacement (Chevrolet) or Radiator Grille Replacement (GMC) or Radiator Grille Replacement (Chevrolet HD) or Radiator Grille Replacement (GMC HD) .
Remove the headlamp. Refer to Headlamp Replacement (Chevrolet) or Headlamp Replacement (GMC ) or Headlamp Replacement (HD Diesel) .

Hood Stop Bumper Bracket Bolts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Hood Stop Bumper Bracket
Tip: Unclip radiator air baffles from stop bracket.
