Radiator Grille Replacement (GMC HD)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

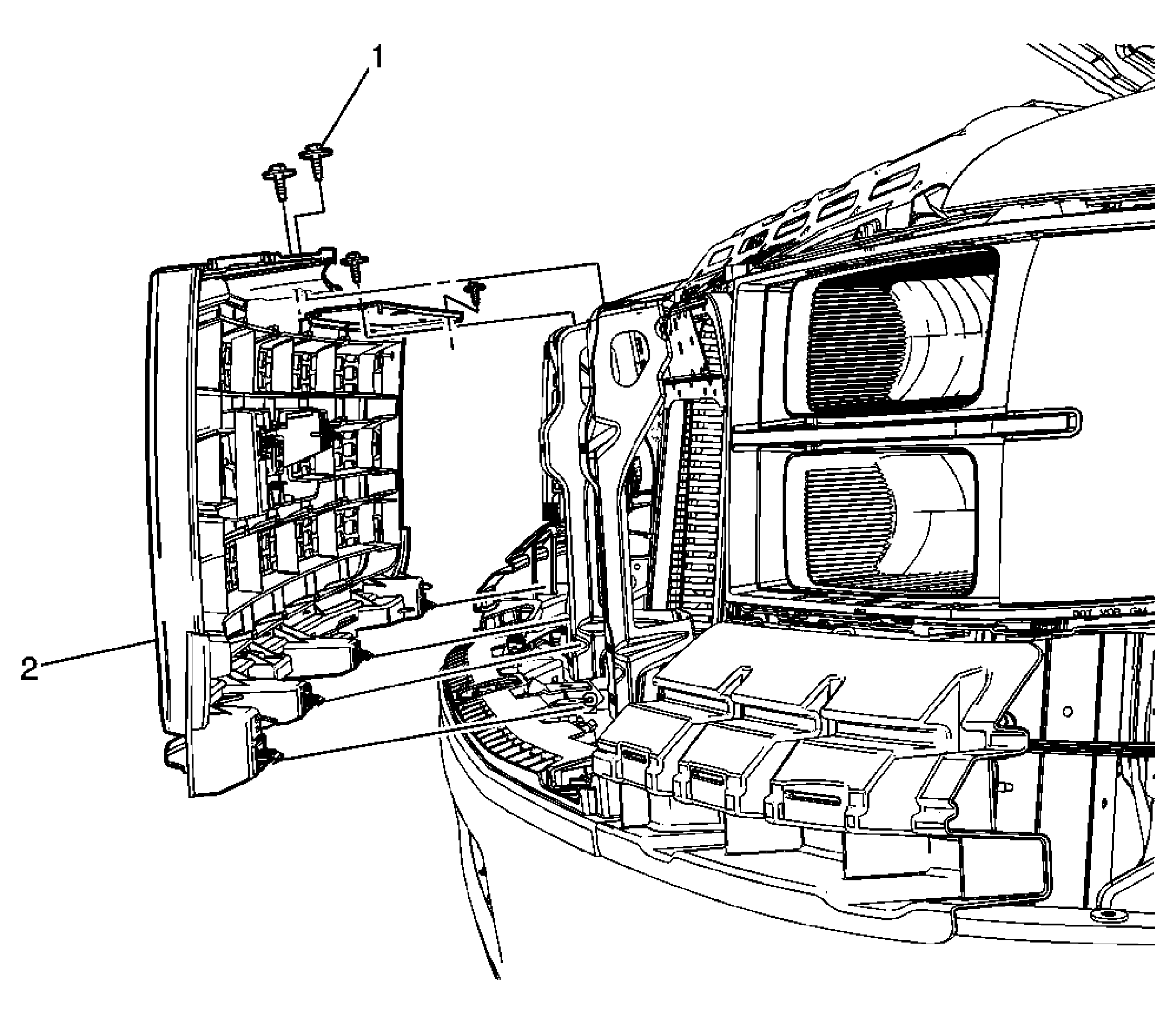

Fig 1: View Of Radiator Grille Replacement (GMC HD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the radiator air upper baffle/deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement . Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) .
1	Radiator Grille Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 7 N.m (62 lb in)
2	Radiator Grille Assembly Procedure Disengage the six clips by using a pair of flat-bladed pliers pinching the retainer tabs securing the grille to the hood stop center bracket and hood stop left and right brackets. Separate the radiator grille from the hood stop center and hood LH and RH brackets by pulling the radiator grille outward away from the vehicle.

Callout

Component Name

Preliminary Procedure

Remove the radiator air upper baffle/deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement .
Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) .

Radiator Grille Bolts (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 7 N.m (62 lb in)

Radiator Grille Assembly

Procedure

Disengage the six clips by using a pair of flat-bladed pliers pinching the retainer tabs securing the grille to the hood stop center bracket and hood stop left and right brackets.
Separate the radiator grille from the hood stop center and hood LH and RH brackets by pulling the radiator grille outward away from the vehicle.
