Stabilizer Shaft Replacement (3500)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

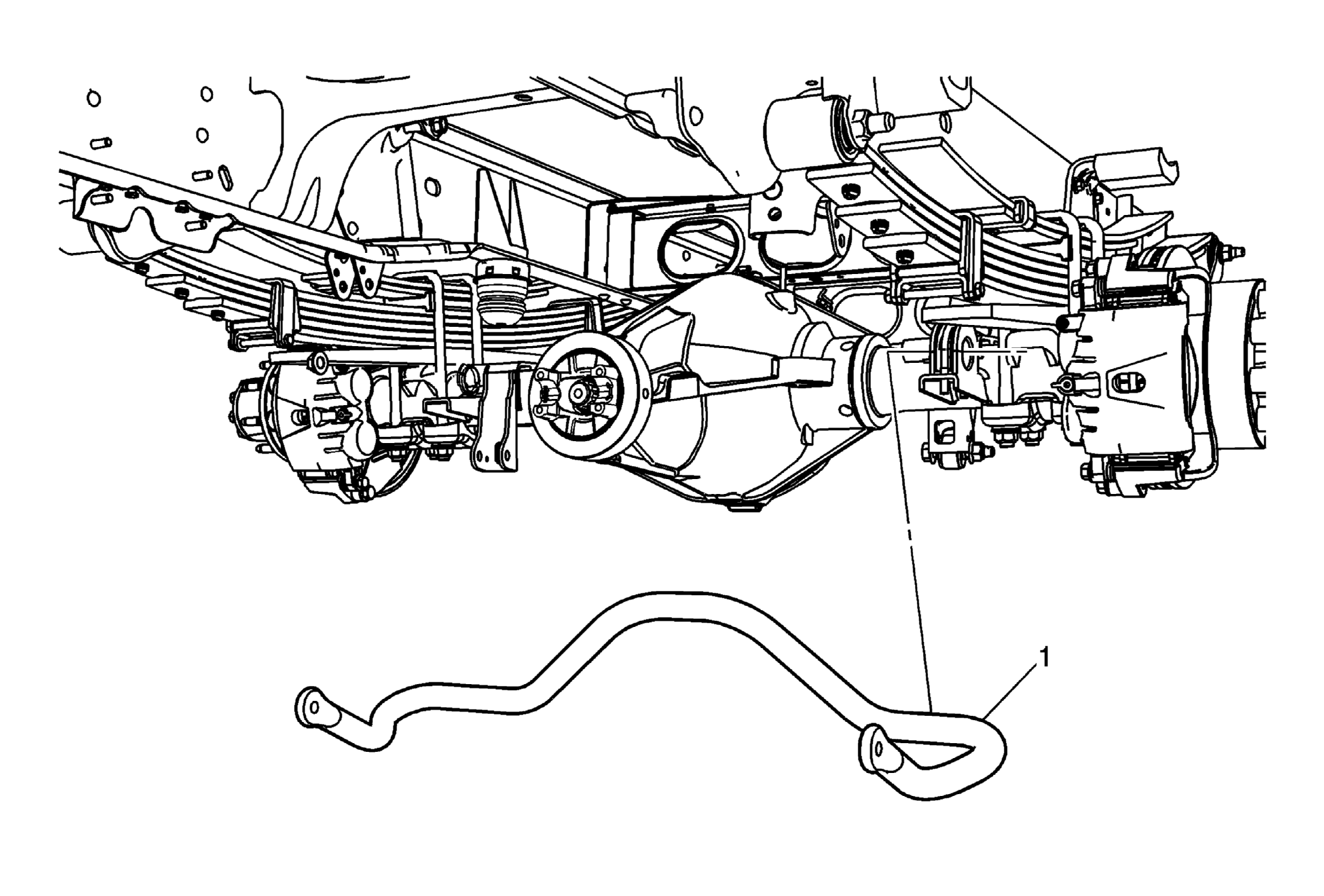

Fig 1: View Of Stabilizer Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right rear shock absorber. Refer to Shock Absorber Replacement (2500, 3500) or Shock Absorber Replacement (1500) . Remove the stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement (3500) . Remove the lower stabilizer shaft link nuts. Refer to Stabilizer Shaft Link Replacement (3500) . Remove the propeller shaft. For vehicles equipped the one piece propeller shaft, refer to One-Piece Propeller Shaft Replacement . For vehicles equipped with the two piece propeller shaft, refer to Two-Piece Propeller Shaft Replacement .
1	Rear Stabilizer Shaft

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the right rear shock absorber. Refer to Shock Absorber Replacement (2500, 3500) or Shock Absorber Replacement (1500) .
Remove the stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement (3500) .
Remove the lower stabilizer shaft link nuts. Refer to Stabilizer Shaft Link Replacement (3500) .
Remove the propeller shaft.
- For vehicles equipped the one piece propeller shaft, refer to One-Piece Propeller Shaft Replacement .
- For vehicles equipped with the two piece propeller shaft, refer to Two-Piece Propeller Shaft Replacement .

Rear Stabilizer Shaft
