Stabilizer Shaft Link Replacement (3500)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

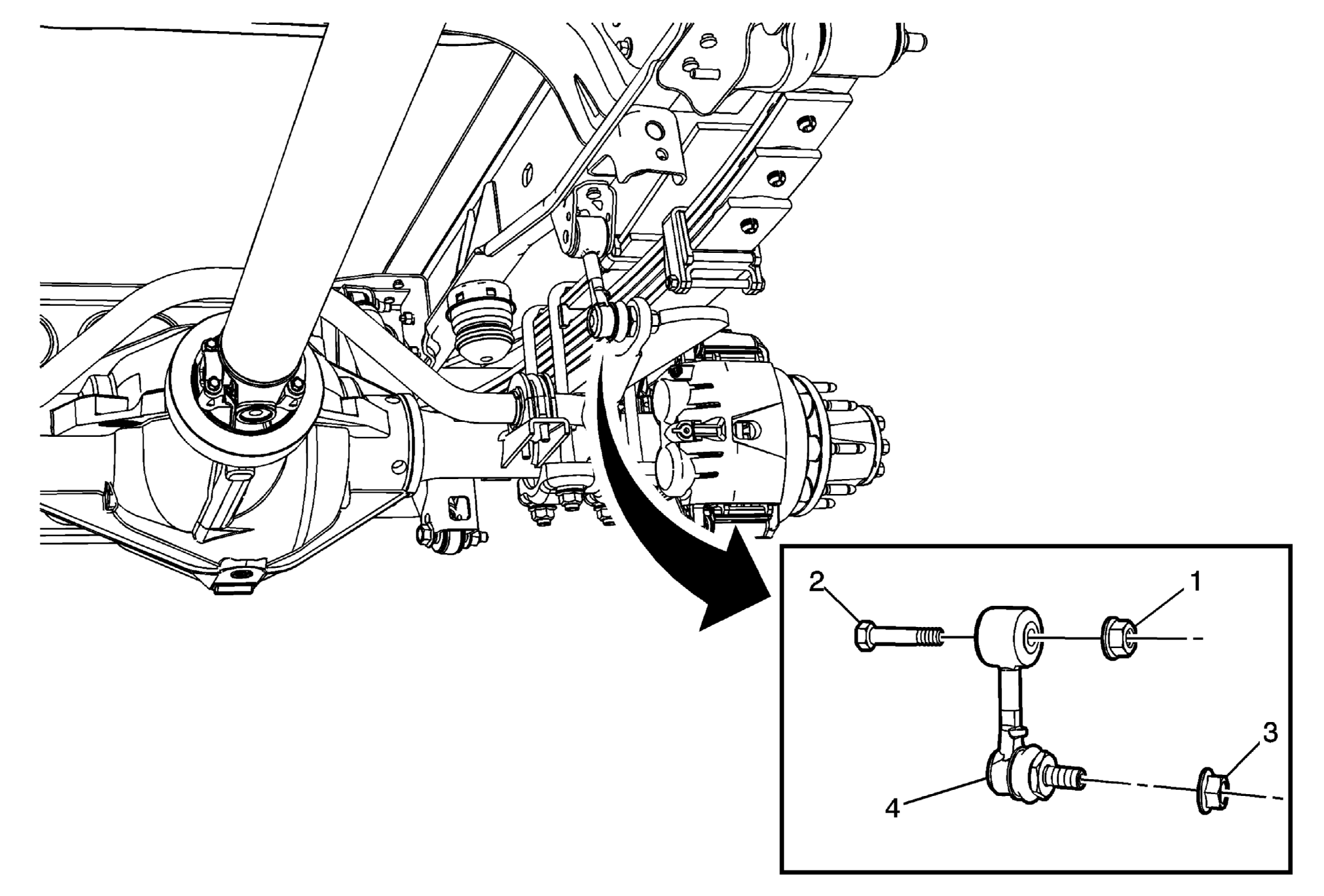

Fig 1: View Of Stabilizer Shaft Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Stabilizer Shaft Link Nut CAUTION: Refer to Fastener Caution . Tighten: 95 N.m (70 lb ft)
2	Rear Stabilizer Shaft Bolt
3	Rear Stabilizer Shaft Link Nut Tighten: 53 N.m (39 lb ft) Tip: Use an open end wrench to hold the stud while torquing to specifications.
4	Stabilizer Shaft Link
