Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
  2. Remove the front air deflector. Refer to Front Air Deflector Replacement .
  3. Place drain pans under the vehicle as needed.
    4. Fig 1: View Of Power Steering Cooling Lines
    GM1371688Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering cooler hose from the power steering fluid cooler.

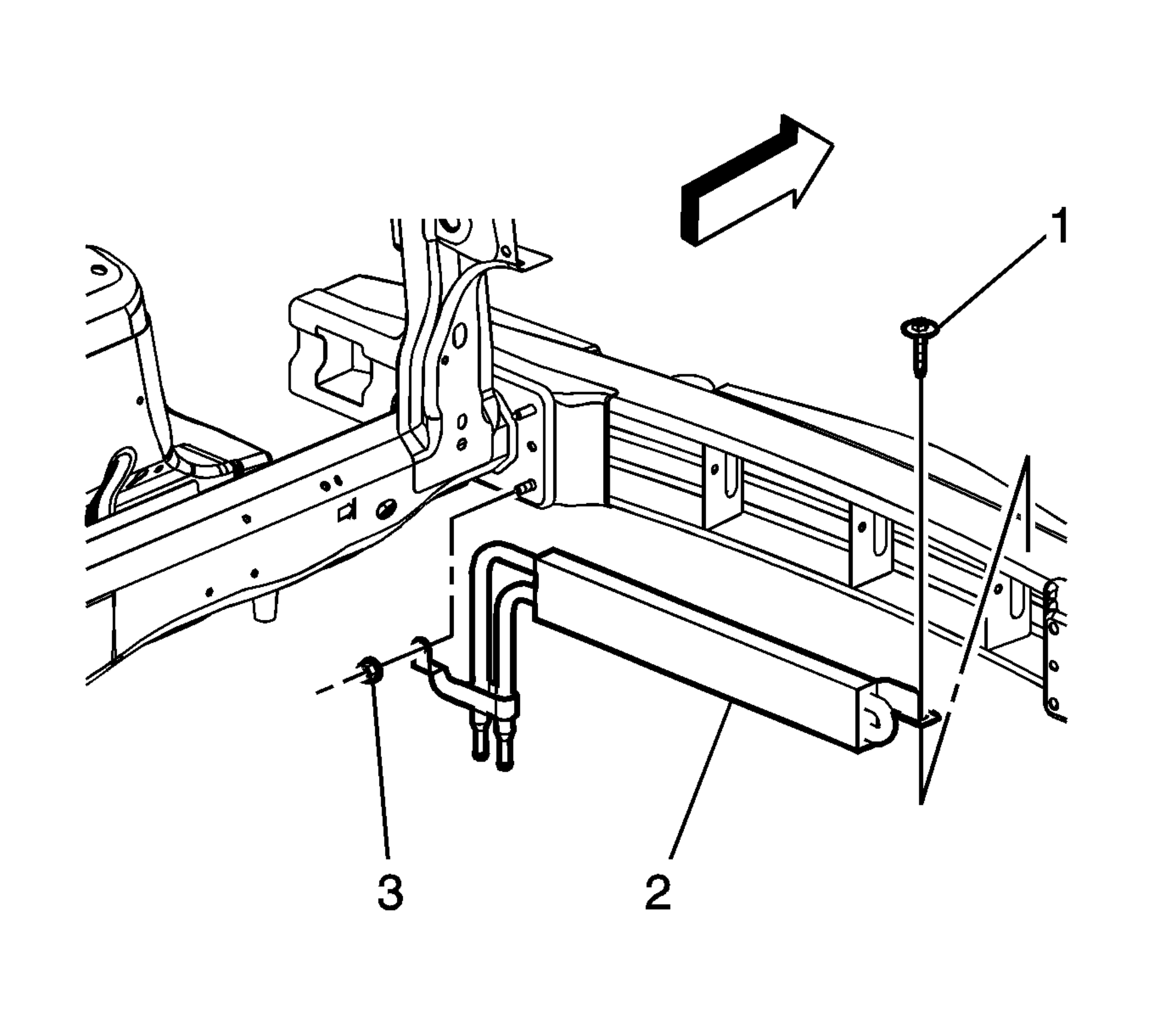

    5. Fig 2: View of Front Bumper Fascia Assembly
    GM1974067Courtesy of GENERAL MOTORS CORP.
  5. Loosen the front bumper fascia enough to pull it forward and remove the power steering fluid cooler bracket bolt (1). Refer to Front Bumper Fascia Replacement .
  6. Remove the power steering fluid cooler bracket nut (3).
  7. Remove the power steering fluid cooler (2) from the vehicle.
