Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

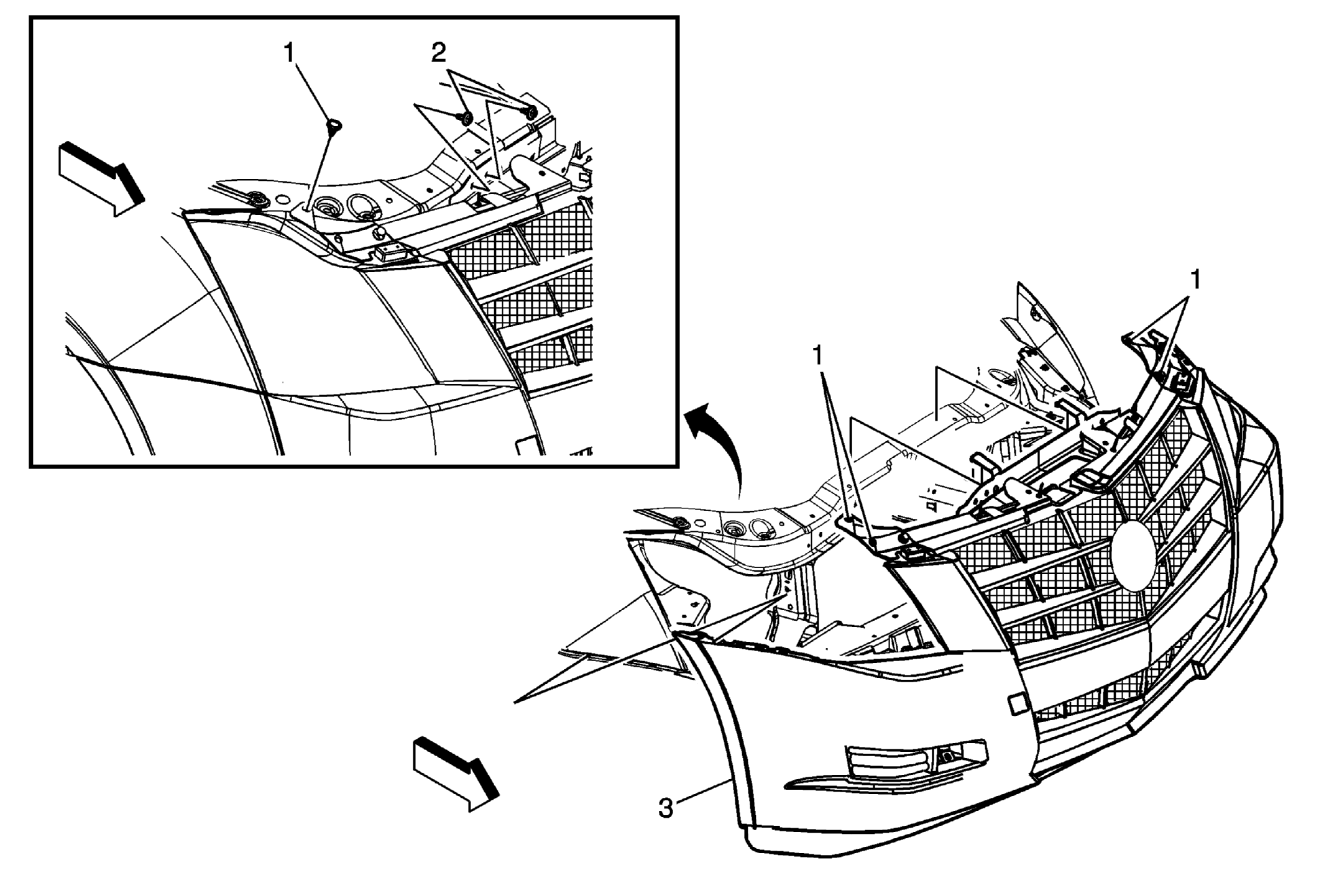

Fig 1: View of Fascia Section of Front Bumper
GM1915334Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  2. Remove the front bumper lower fascia. Refer to Front Bumper Lower Fascia Replacement .
  3. Remove the front bumper air deflector. Refer to Front Bumper Fascia Air Deflector Replacement .
  4. Disconnect the headlamp washer hose from the fascia.
  5. Remove the front fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement (w/o T96) or Front Fog Lamp Bezel Replacement (w/T96) .
  6. Remove the front fog lamp assembly. Refer to Front Fog Lamp Replacement .
  7. Remove the front compartment sight shields. Refer to Front Compartment Sight Shields Replacement .
1 Front Bumper Fascia Plastic Retainer (Qty: 4)
2 Front Bumper Fascia Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tip:  Reach underneath the wheelhouse to access the bolts.

Tighten:  2 N.m (18 lb in)
3 Front Bumper Fascia

Procedure

  1. Pull forward to remove the front bumper fascia.
  2. Disconnect any electrical connectors.
  3. Transfer parts as needed.
