Front Air Deflector Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

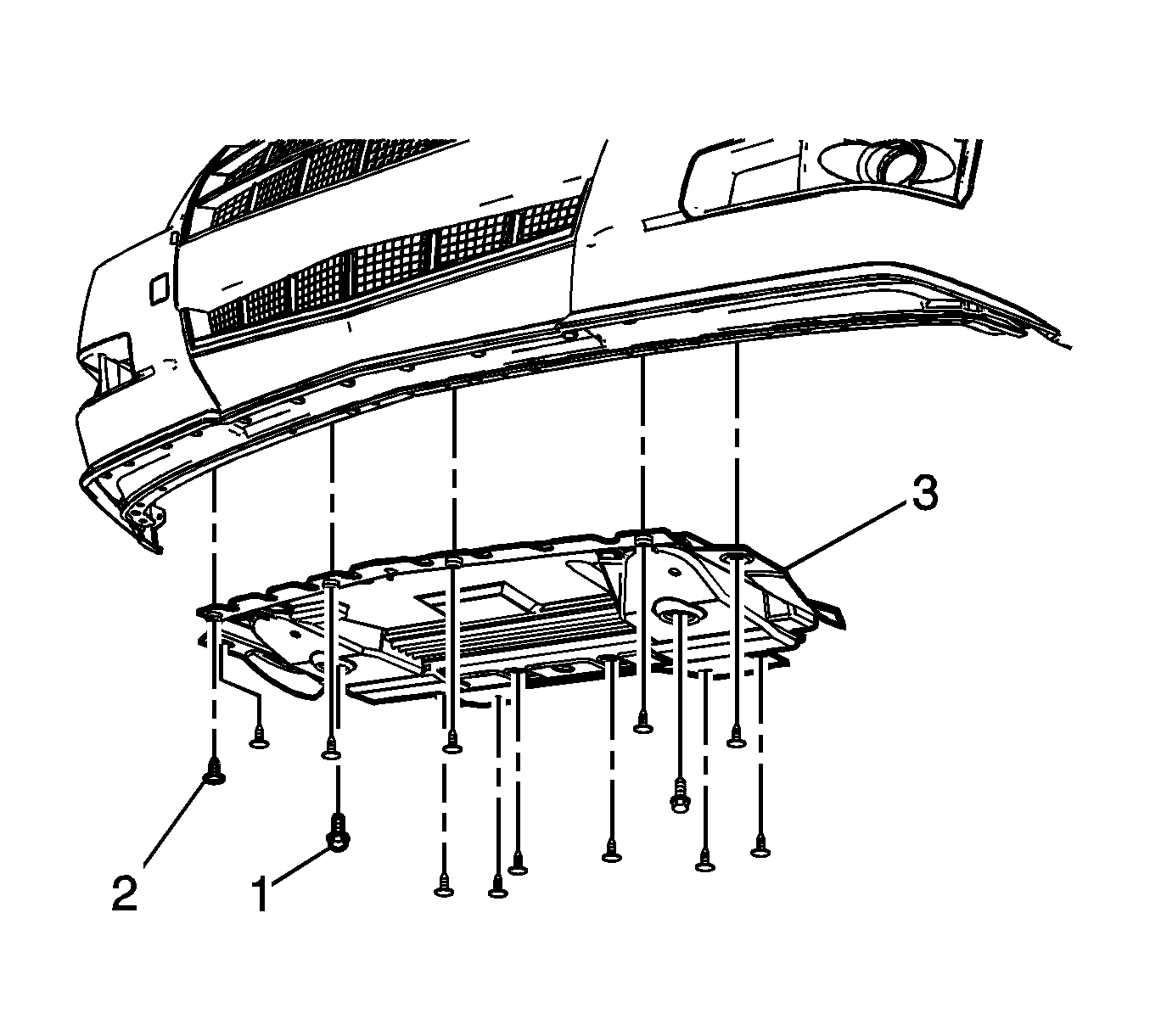

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Air Deflector Bolt (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Front Air Deflector Push Pin (Qty: 12) |
| 3 | Front Air Deflector |
