Front Fog Lamp Bezel Replacement (w/o T96)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

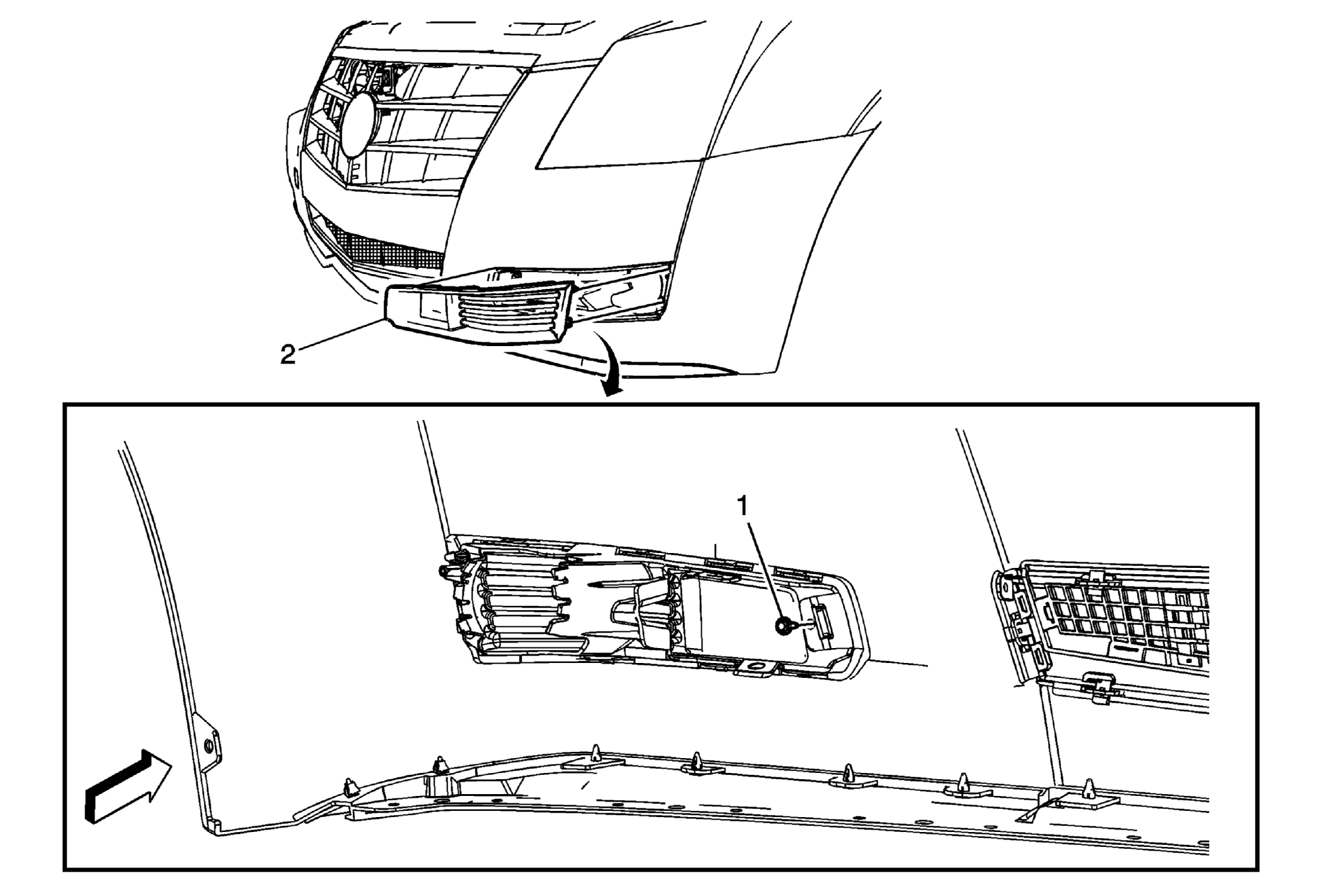

Fig 1: Front Fog Lamp Bezel Replacement (w/o T96)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement . Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement (European) or Front Brake Caliper Cooling Duct Replacement (North America) .
1	Front Fog Lamp Bezel Screw Tip: Hand tighten the screw only, no torque required.
2	Front Fog Lamp Bezel Tip: Remove the bezel from the fascia by pushing the bezel outward from the front bumper fascia.

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement .
Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement (European) or Front Brake Caliper Cooling Duct Replacement (North America) .

Front Fog Lamp Bezel Screw
Tip: Hand tighten the screw only, no torque required.

Front Fog Lamp Bezel
Tip: Remove the bezel from the fascia by pushing the bezel outward from the front bumper fascia.
