Wheelhouse Extension Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

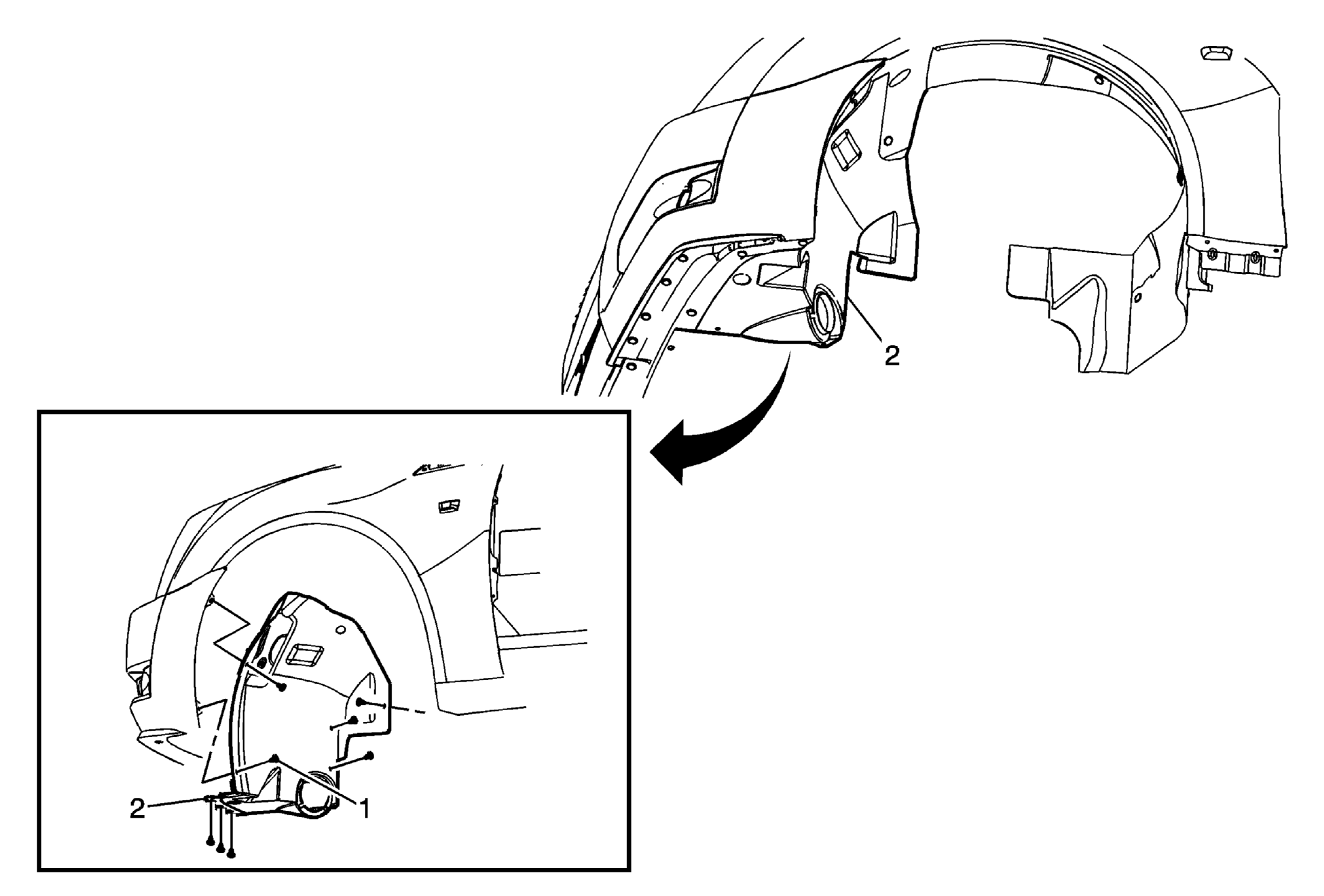

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the engine splash shield. Refer to Engine Splash Shield Replacement . |
|
| 1 | Wheelhouse Extension Push-Pin (Qty: 8) |
| 2 | Wheelhouse Extension Tip: Turn the extension to the side to remove. |
