Front Brake Caliper Cooling Duct Replacement (North America)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

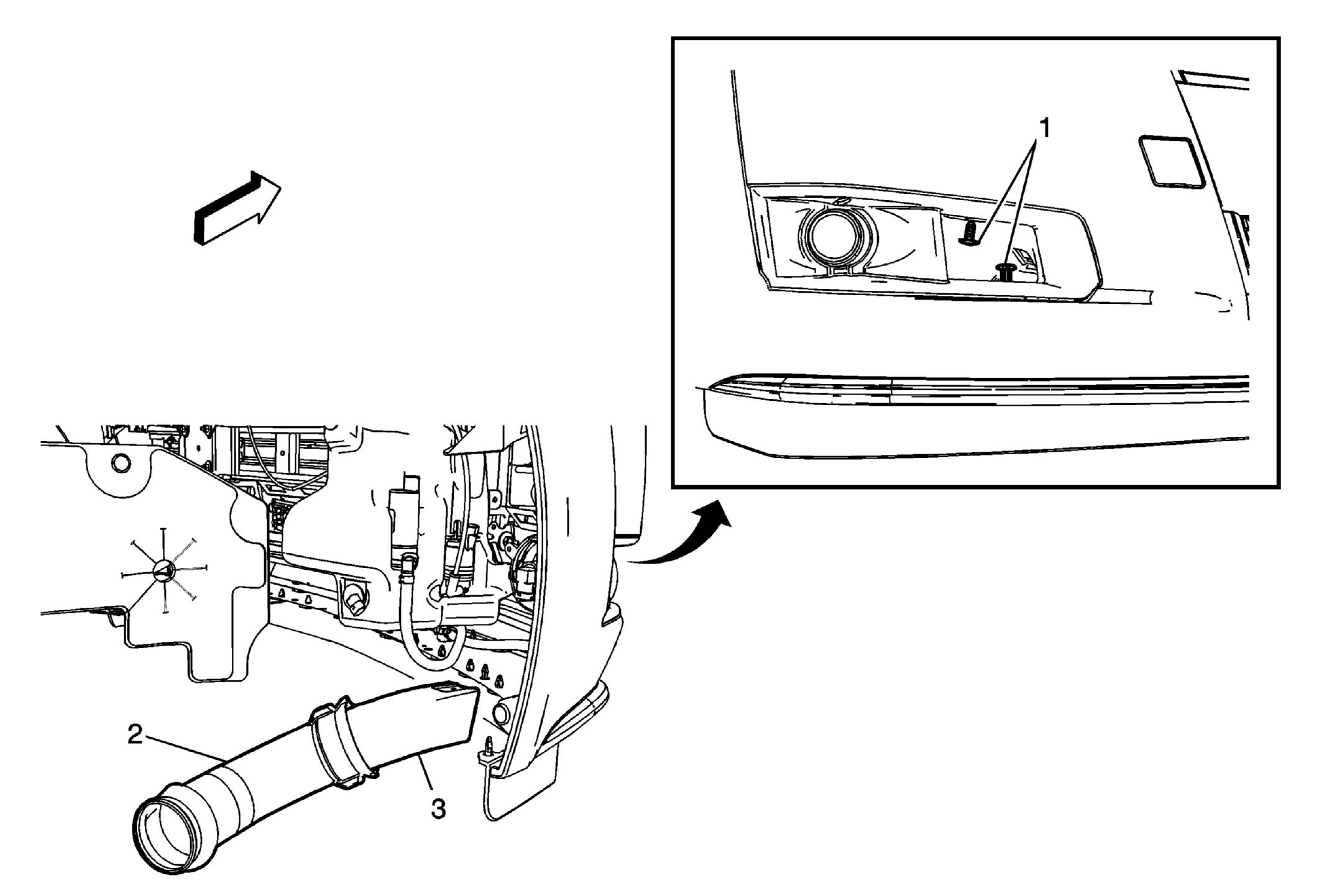

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement . |
|
| 1 | Front Brake Caliper Cooling Duct Retainer (Qty: 2) Tip: Use a suitable tool in order to remove the brake caliper cooling duct retainers from the front side of the bumper fascia. |
| 2 | Front Brake Caliper Cooling Duct Rear |
| 3 | Front Brake Caliper Cooling Duct Front Tip: Remove the duct from the front fog lamp bezel assembly. |
