Front Fog Lamp Bezel Replacement (w/T96)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

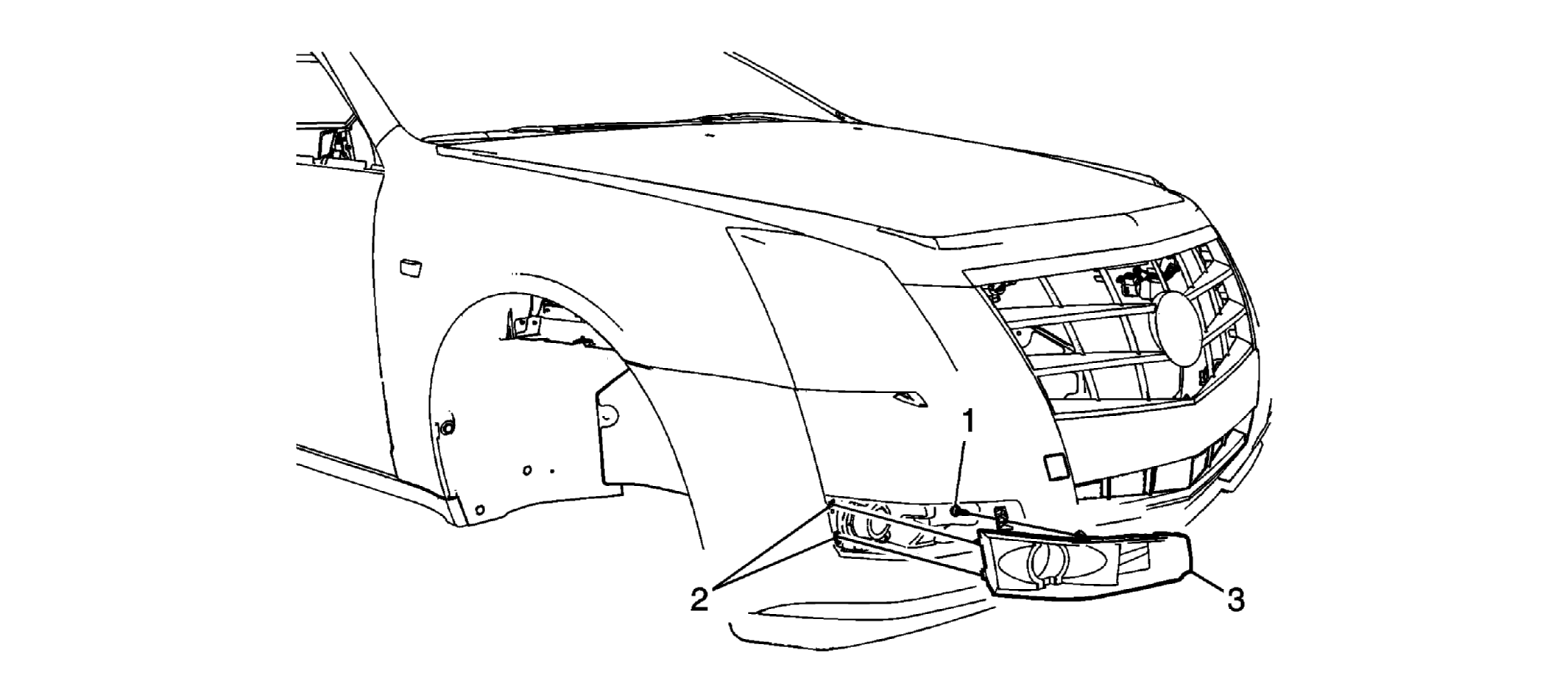

Fig 1: Front Fog Lamp Bezel Replacement (w/T96)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement . Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement (European) or Front Brake Caliper Cooling Duct Replacement (North America) .
1	Front Fog Lamp Bezel Screw NOTE: Refer to Fastener Notice . Tighten: 1.3 N.m (12 lb in)
2	Front Fog Lamp Bezel Retention Clip (Qty: 2)
3	Front Fog Lamp Bezel Procedure Disengage the six inner retainer tabs securing the bezel to the front bumper fascia. Pull outward from the outer edge in order to release the outer retention clips securing the bezel to the front bumper fascia. Remove the front fog lamp bezel.
