Steering Shaft, Lower Bearing & Jacket - Disassemble - Off Vehicle (Standard Column)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the electronic lock module assembly. Refer to Electronic Column Lock Module - Disassemble - Off Vehicle (Tilt Column) or Electronic Column Lock Module - Disassemble - Off Vehicle (Standard Column) .

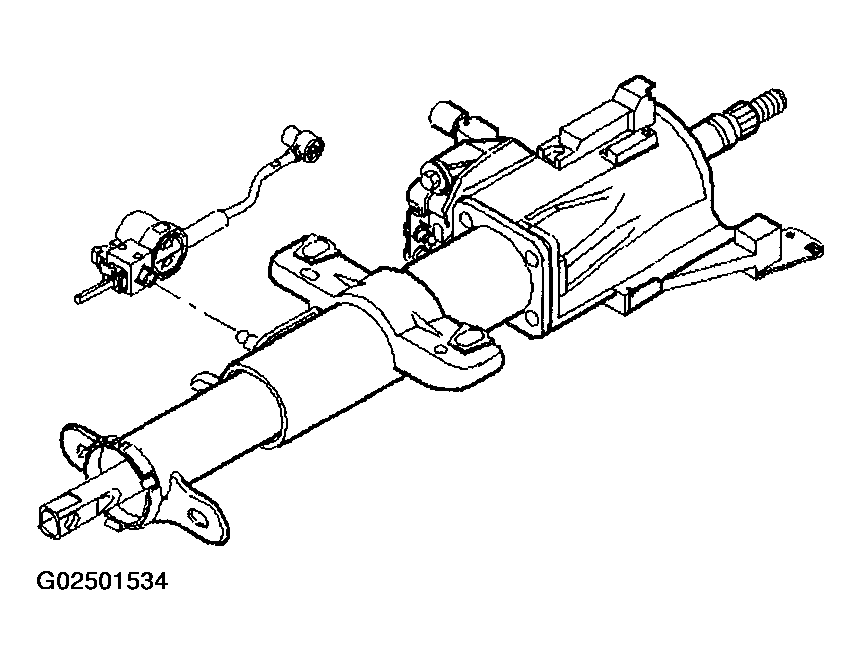

Fig 1: Identifying Electronic Lock Module Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the shift lever assembly. Refer to Shift Lever - Disassemble - Off Vehicle .
Remove the turn signal and multifunction switch assembly. Refer to Turn Signal & Multifunction Switch Assembly - Disassemble - Off Vehicle .
Use a screwdriver to gently pry the automatic transmission shift lock control from the steering column jacket assembly.
Remove the 3 flat head 6-lobed socket tapping screws.
Remove the park lock cable assembly.

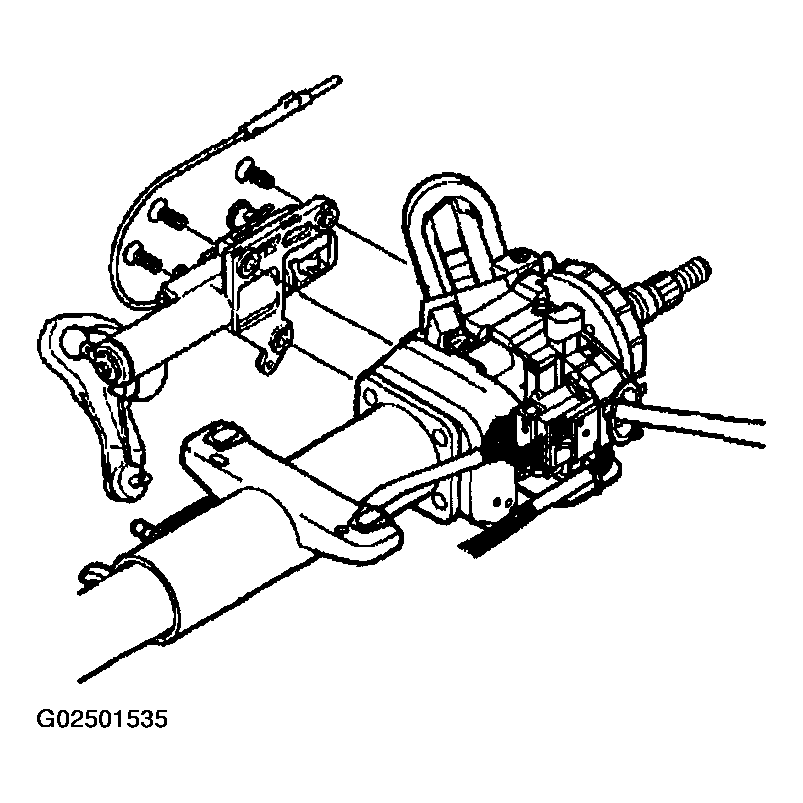

Fig 2: Identifying Park Lock Cable Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the 4 TORX(tm) screws from the steering column housing assembly.
Remove the steering column housing assembly from the steering column housing jacket.

Fig 3: Identifying Steering Column Housing Jacket
Courtesy of GENERAL MOTORS CORP.
Remove the following parts from the steering column jacket assembly:
1. The steering column seal (3).
2. The adapter and bearing assembly (2).
3. The lower steering shaft (1).
Fig 4: Identifying Steering Column Jacket Assembly Components
Courtesy of GENERAL MOTORS CORP.
