Electronic Column Lock Module - Disassemble - Off Vehicle (Standard Column)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle  .
  3. Remove the turn signal cancel cam, bearing thrust washer. Refer to Turn Signal Cancel Cam & Bearing Thrust Washer - Disassemble - Off Vehicle  .
  4. Remove the ignition and key alarm switch assembly only. Refer to Ignition & Key Alarm Switch Assembly - Disassemble - Off Vehicle  .
  5. Remove the park lock cable assembly (1) from the electronic lock module assembly.
    1. Place the lock cylinder in the OFF-LOCK position.
    2. Place the shift lever clevis into the PARK position.
    3. Insert a small screwdriver into the slot on the electronic lock module assembly. Push against the locking tab on the end of the park lock cable assembly (1).
    4. Disconnect the park lock cable assembly (1) from the electronic lock module assembly.

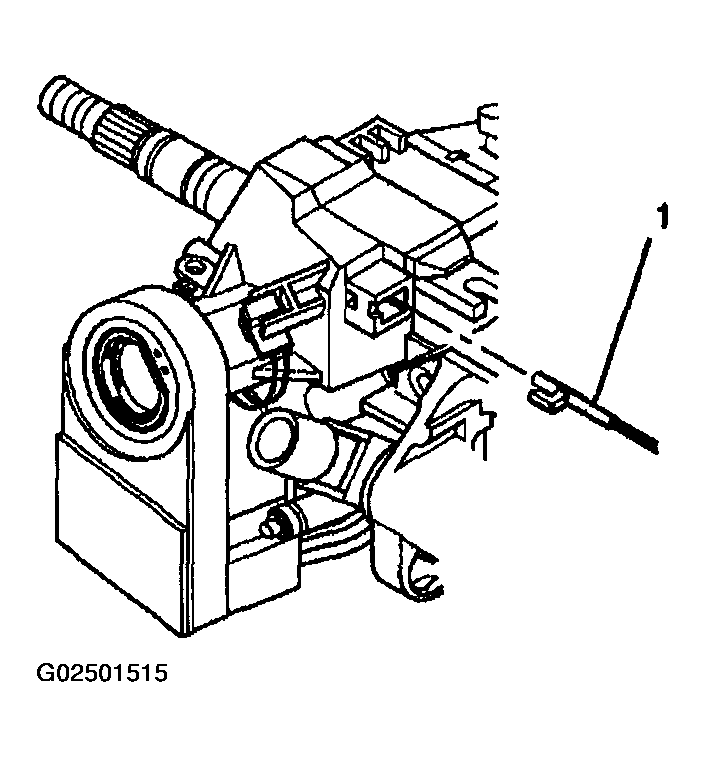

    Fig 1: Identifying Park Lock Cable Assembly
    G02501515Courtesy of GENERAL MOTORS CORP.
  6. Remove the 3 pan head tapping screws (2) from the electronic lock module assembly (1).
  7. Remove the electronic lock module assembly (1) from the steering column housing assembly.

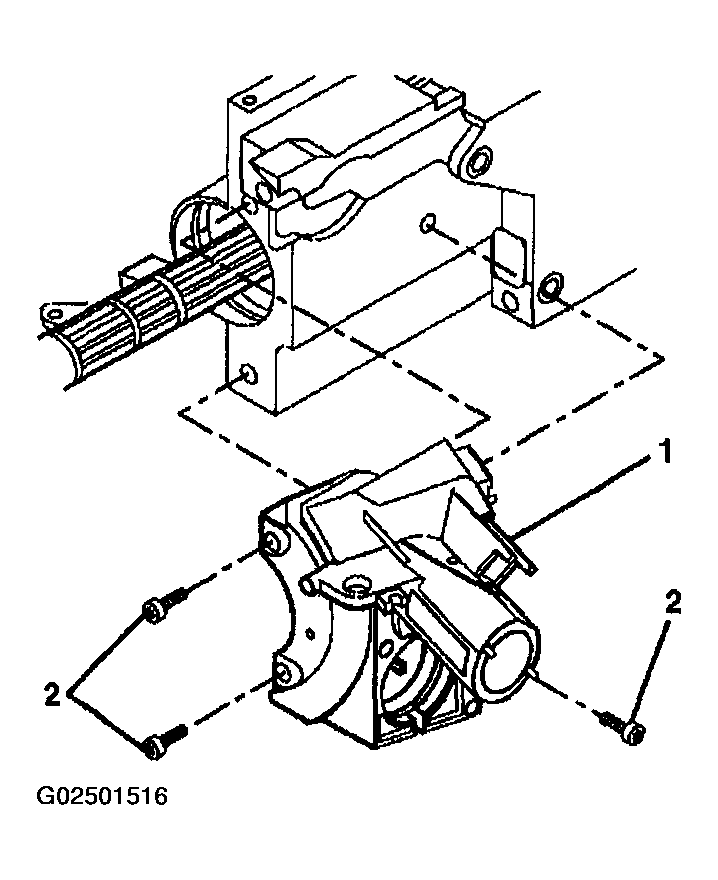

    Fig 2: Identifying Electronic Lock Module Assembly
    G02501516Courtesy of GENERAL MOTORS CORP.
