Turn Signal & Multifunction Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle .

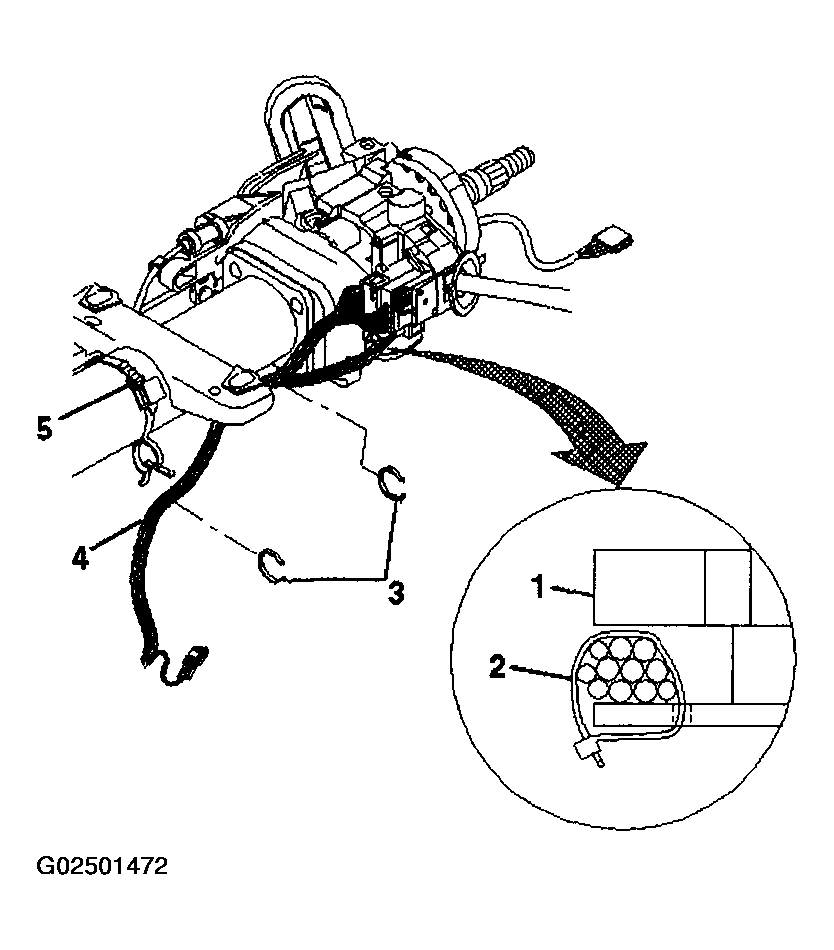

Remove the wire harness assembly (4) out of the wire harness strap (5). Remove the wire harness straps (3) from the wire harness assembly (4). Remove the wire harness strap (2) from the upper tilt head assembly (1).

Fig 1: Identifying Wire Harness Assembly
Courtesy of GENERAL MOTORS CORP.

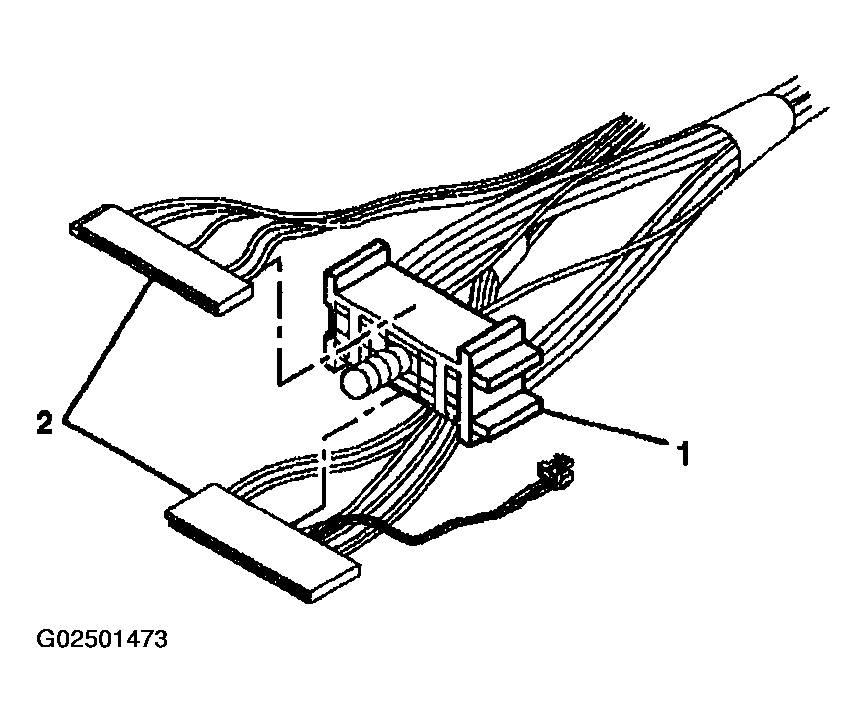

Slide the 2 connectors (2) off of the bulk head connector (1).

Fig 2: Bulk Head Connector
Courtesy of GENERAL MOTORS CORP.
Remove the 2 pan head tapping screws.

Fig 3: Identifying Multifunction Switch Pan Head Screws
Courtesy of GENERAL MOTORS CORP.

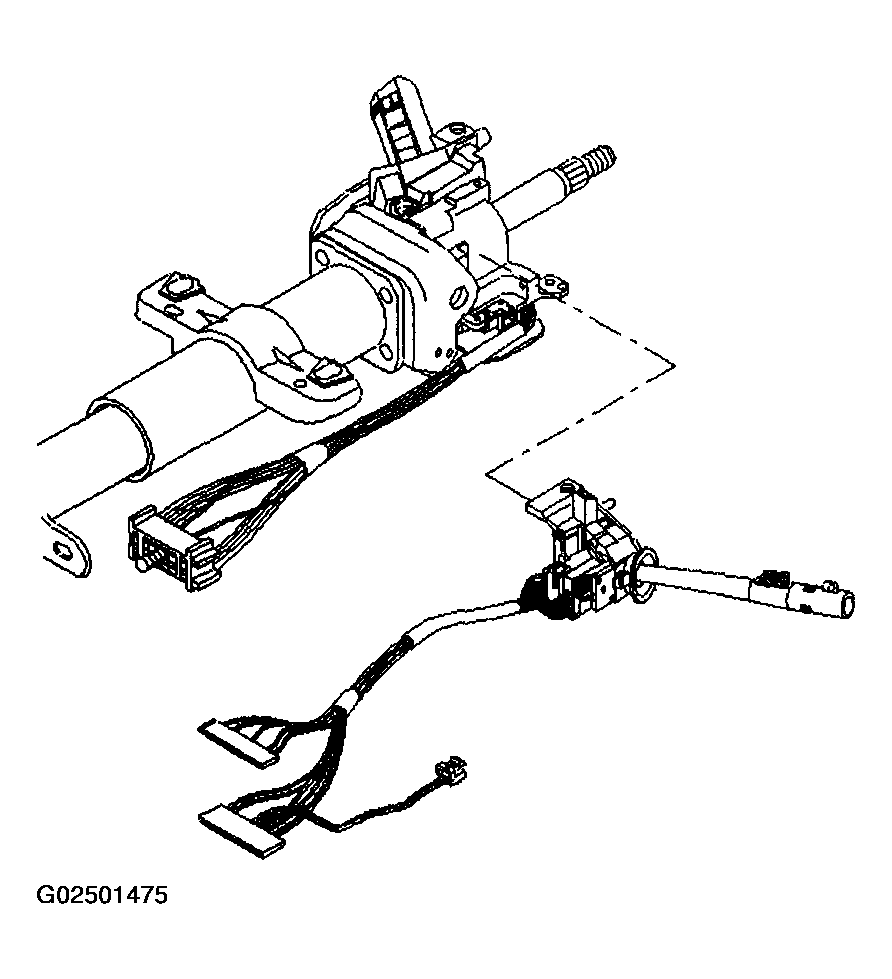

Remove the turn signal and multifunction switch assembly.

Fig 4: Identifying Turn Signal & Multifunction Switch Assembly
Courtesy of GENERAL MOTORS CORP.
