Ignition & Key Alarm Switch Assembly - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle  .
  3. Remove the wire harness assembly (4) out of the wire harness strap (5). Remove the wire harness straps (3) from the wire harness assembly (4). Remove the wire harness strap (2) from the upper tilt head assembly (1).

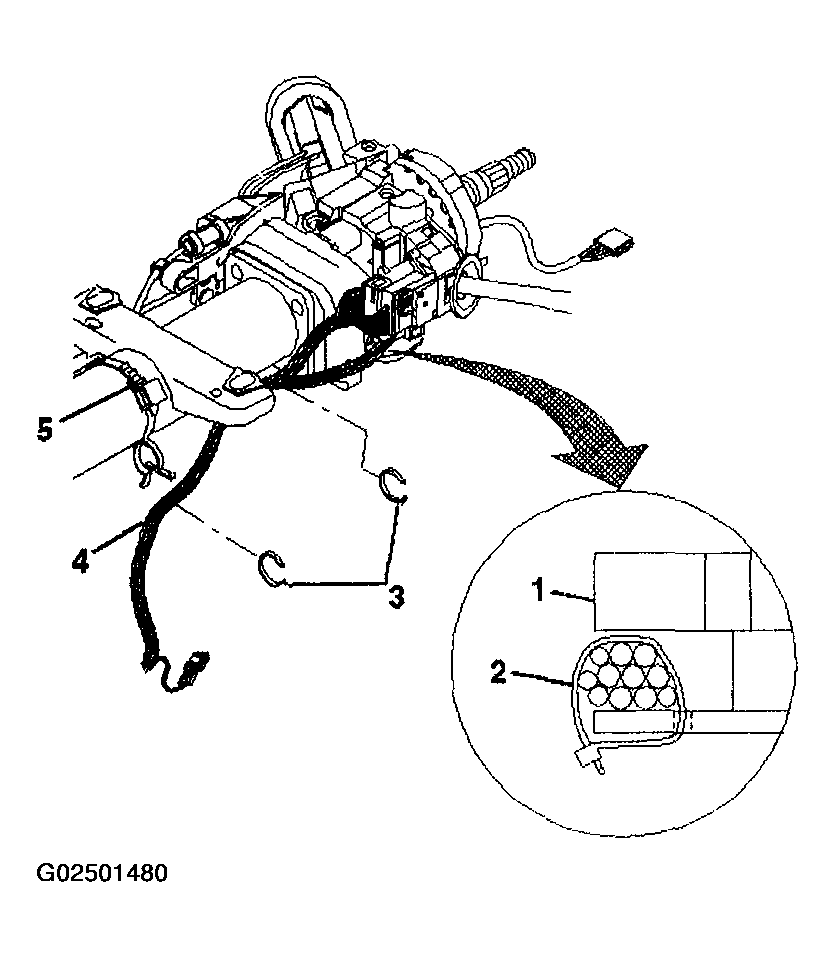

    Fig 1: Identifying Wire Harness Assembly
    G02501480Courtesy of GENERAL MOTORS CORP.
  4. Slide the 2 connectors (2) off from the bulk head connector (1).

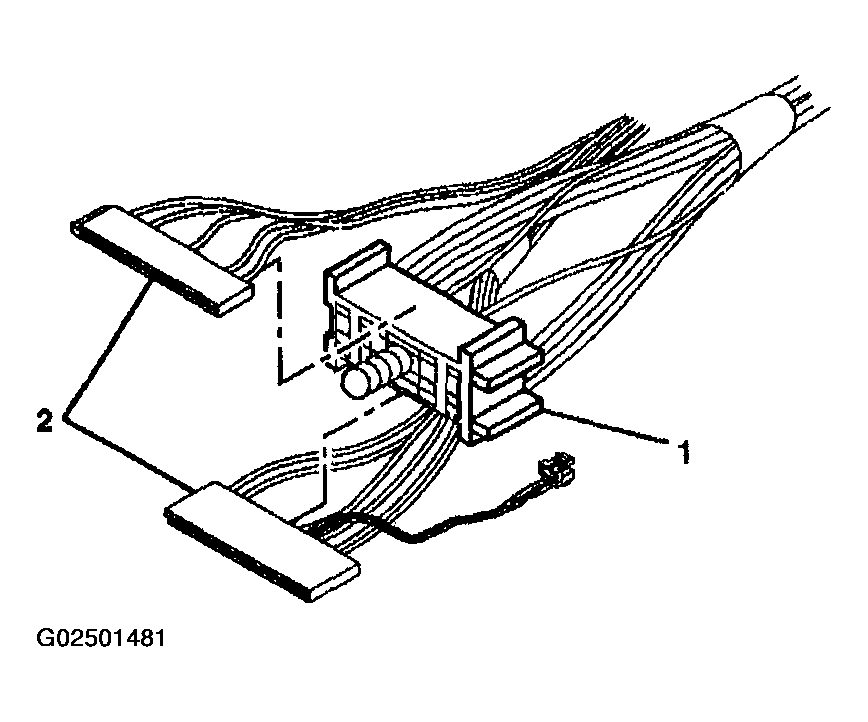

    Fig 2: Identifying Bulk Head Connector
    G02501481Courtesy of GENERAL MOTORS CORP.
  5. Remove the key alarm connector (1) from the electronic lock module assembly (2).
  6. Remove the 2 tapping screws from the ignition and key alarm switch assembly (3).
  7. Remove the ignition and key alarm switch assembly (3).

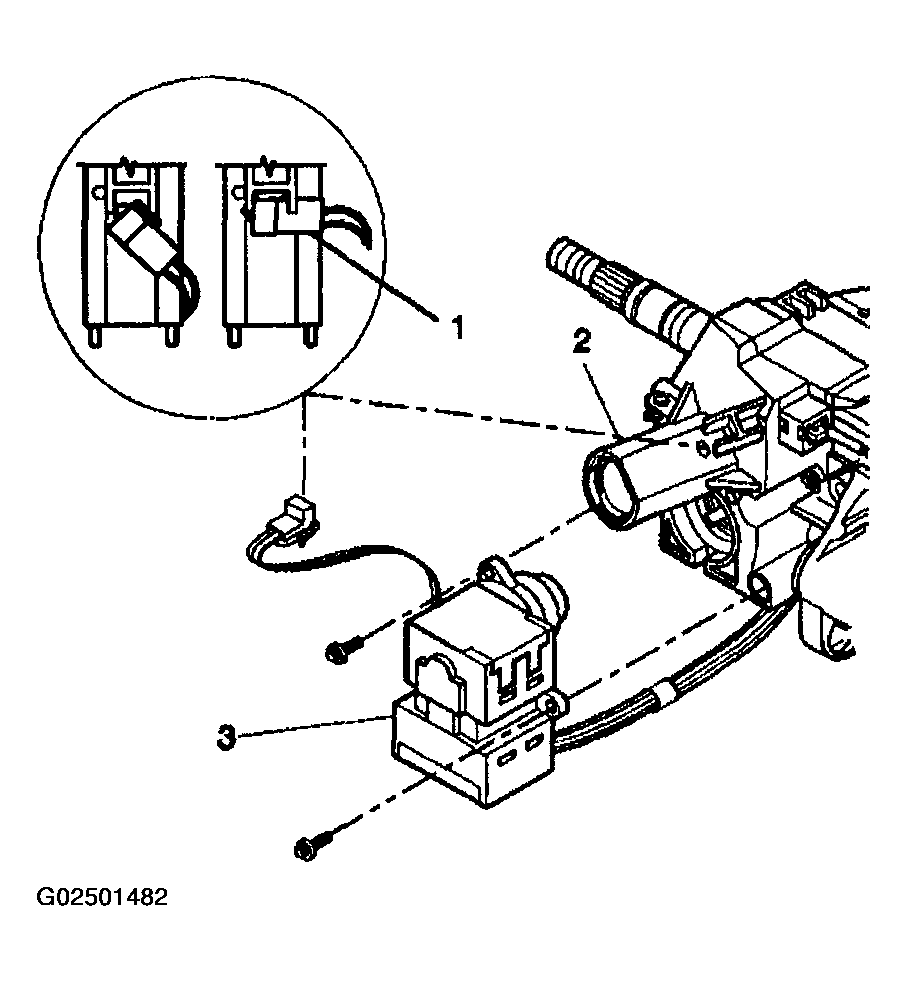

    Fig 3: Identifying Ignition & Key Alarm Switch Assembly
    G02501482Courtesy of GENERAL MOTORS CORP.
